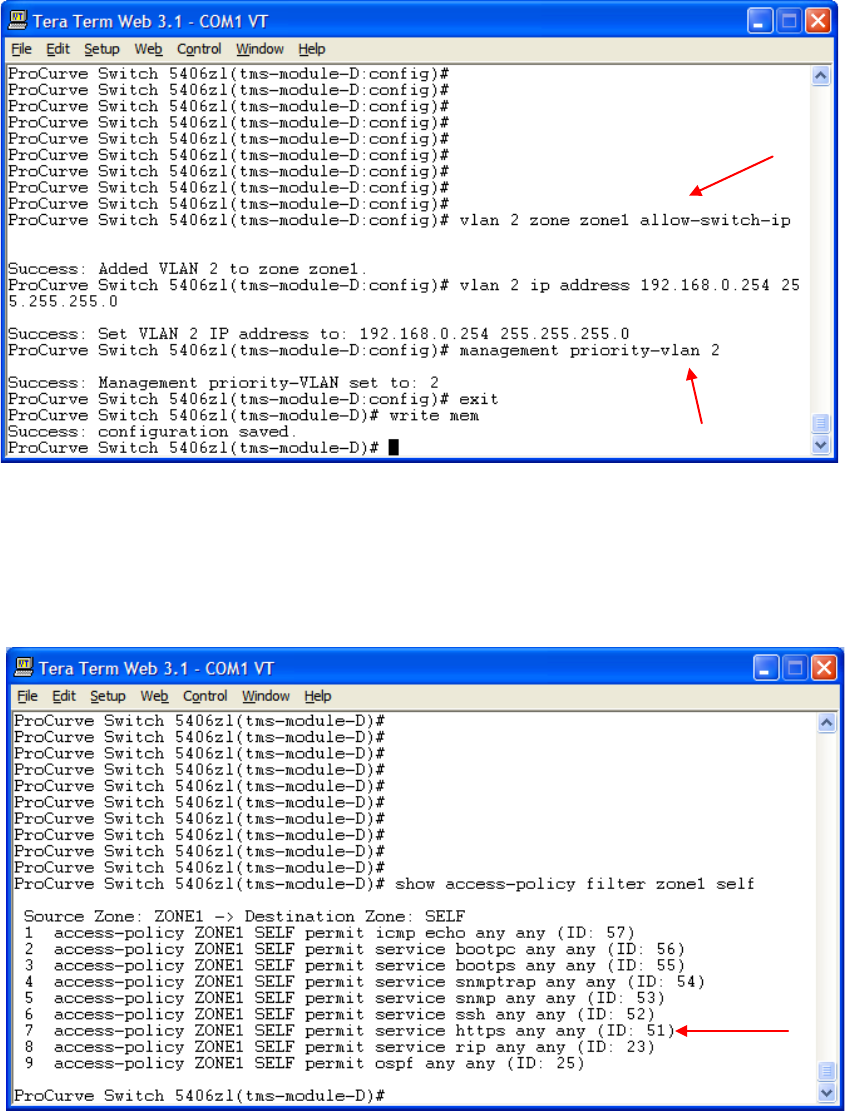

The switch management IP address is in VLAN 2. We want to add the TMS zl Module
to this VLAN as well. We want the switch chassis to keep its IP address, so we will
associate VLAN 2 with zone1, our management zone, and allow for the switch chassis to
have an IP address in the same VLAN. We then assign an IP address to the TMS zl
Module for management purposes. Then configure management priority-vlan 2 to give
any traffic on VLAN 2 management priority. Be sure to save your work with write
memory!
By identifying a management zone, we can see that the TMS zl Module has put access
policies in place that allow for management traffic between Zone1 and Self. We will be
using HTTPS to configure the TMS zl Module and we can see that HTTPS is present in
the access policy.
