Page 67

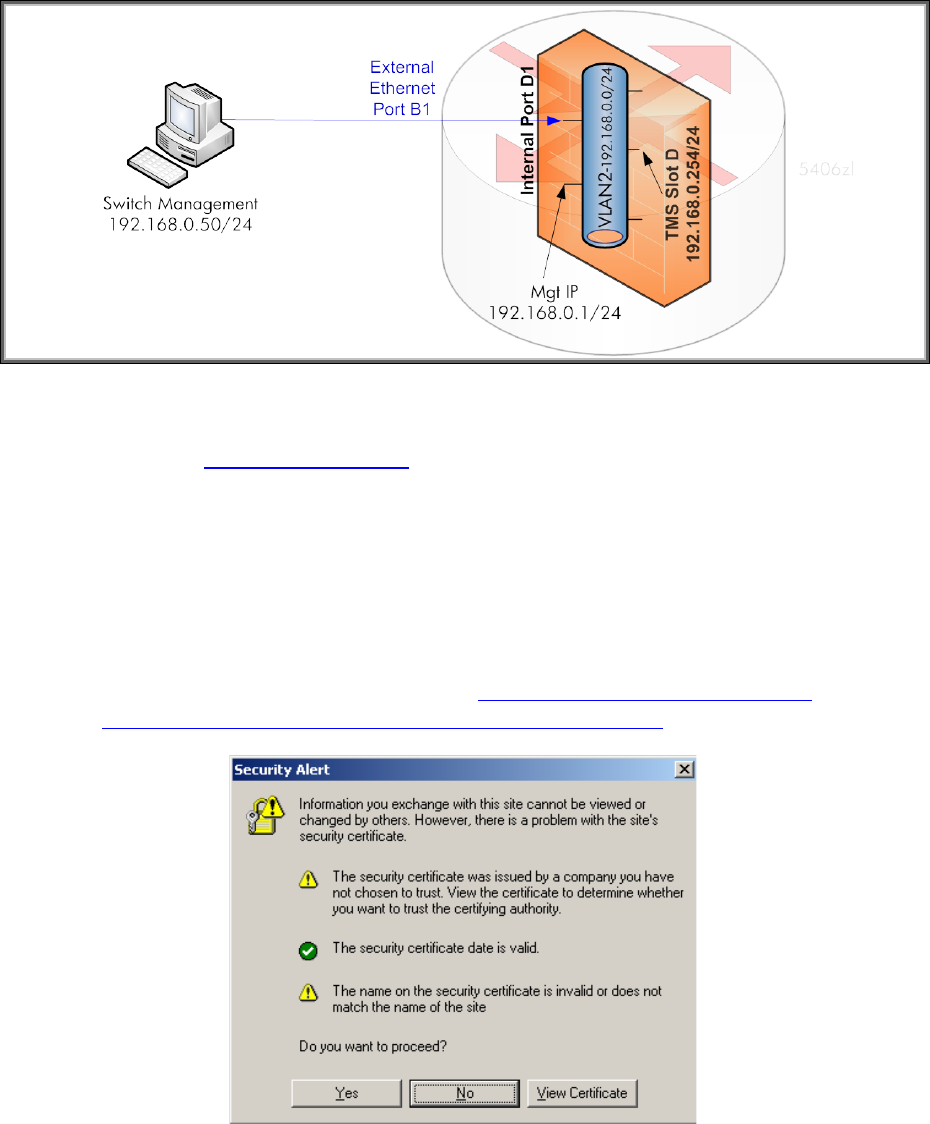

Here is the diagram that represents what we just configured. Our TMS zl Module’s port
D1 became a tagged member of VLAN 2. The 5406zl port B1 is an untagged member of
VLAN 2 and connected to an external Ethernet device.
Note: Port D2 is used for High Availability and is not discussed in this section.
Figure 18
From the PC in the switch management VLAN, VLAN 2, we open up a web browser
with this address: https://192.168.0.254 and we immediately see a “Security Alert”
dialog. The alert explains that (1) the CA that issued the certificate is currently not
trusted, and (2) the name on the certificate is not matching the name of the site. Let’s
click OK and proceed with the connection.
Note: If you click click View Certificate, you will see that this certificate was
issued by the HP ProCurve CA and some details about it. Unfortunately, at the
present time, there is no way to update this certificate to something more specific
to the customer’s environment. For additional discussion, see the “Accessing the
Web Browser Interface” section of the HP ProCurve Threat Management
Services zl Module Management and Configuration Guide.
