Page 73

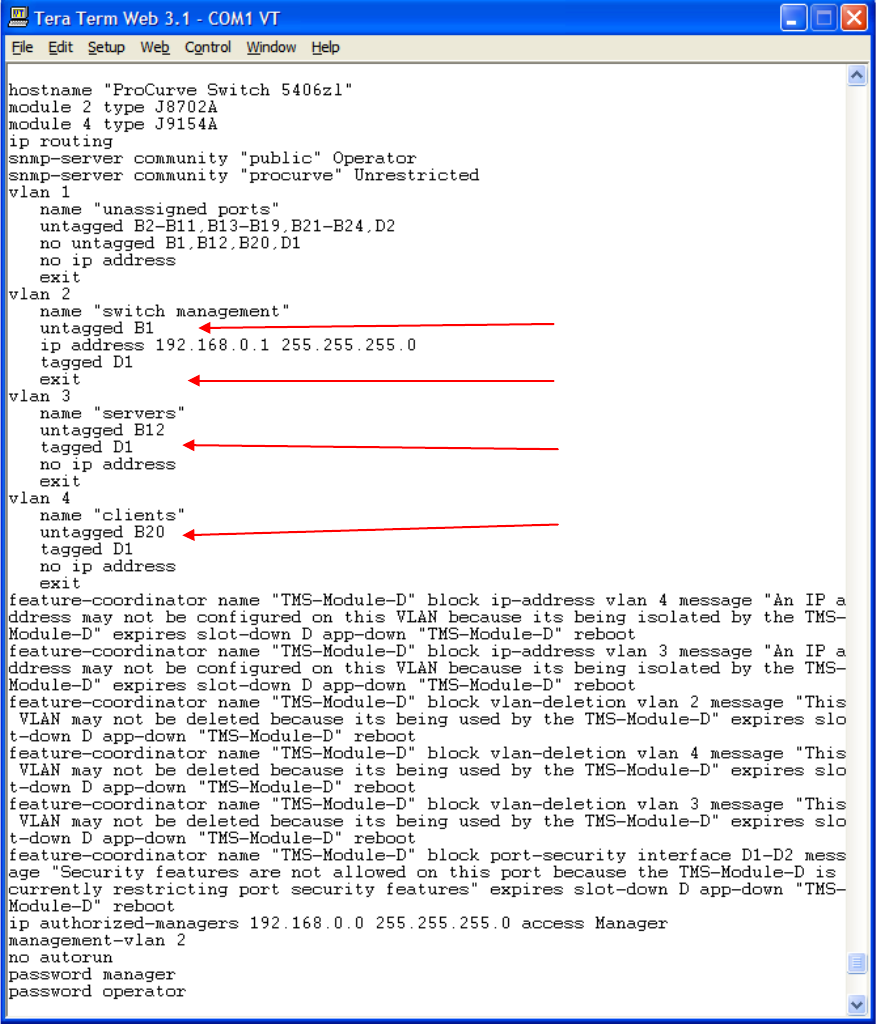

Let’s look at the switch’s running configuration. Here we see how the TMS zl Module’s
D1 port is a tagged member of each VLAN that it has an association with. In addition,
we see several new feature-coordinator commands. These prevent IP address
assignment on the switch’s VLANs that may end up bypassing the protection provided by
the TMS zl Module. Also, there is protection against VLAN deletion.
Figure 19
