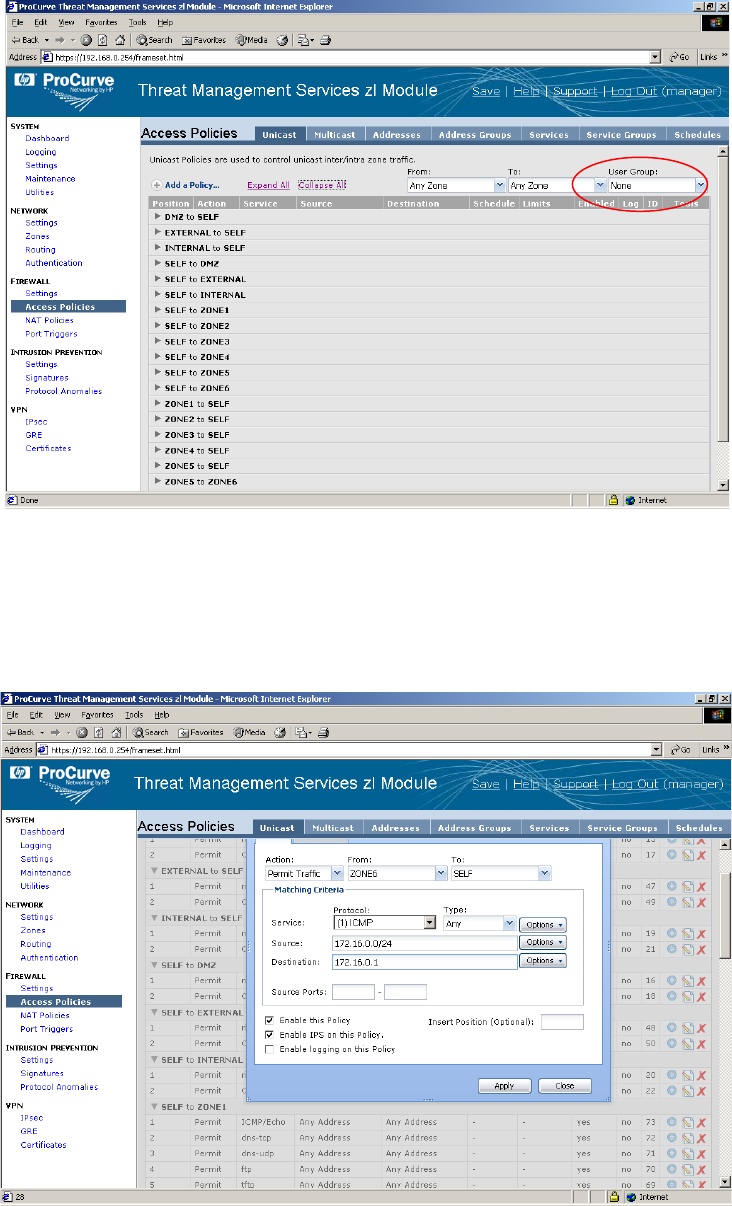

The access policies between zones are shown here. It is very important that the “User
Group” be “None” as we start to add access policies. To add an access policy, click the
Add a Policy… link.
Because the TMS zl Module has taken over routing functionality, it is acting as a default
gateway for VLANs 3 and 4. To aid in any client/server troubleshooting, we are going to
add ICMP Echo access to the default gateway as long as it originates from the same
subnet. The access policy will be from Zone6, in this example, to Self. We’ll repeat for
Zone5.
