Page 82

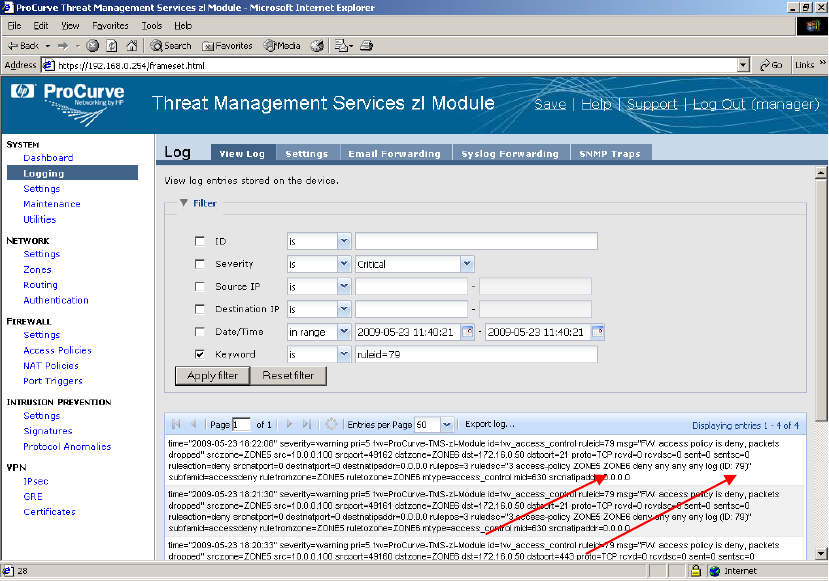

Here in the log, we can filter on a keyword of “ruleid=79”. This allows us to see what
has hit the “Deny” policy. We can see that TCP port 21(FTP) traffic was dropped. While
in our example, we knew that we were using FTP all along, in other cases it may not be
very obvious. This policy can save you a great deal of time and troubleshooting.
At this time, it would be very appropriate to click Save to save your configuration to the
TMS zl Module’s “startup configuration” file. Up to this point, when we have pressed
Apply, we have only been saving the configuration to the TMS zl Module’s “running
configuration” file.
