Page 89
10.5.3 Internet Access for Windows Update
Internet access using a private address requires an additional step – Network Address
Translation, or NAT. Let’s detail this configuration by allowing our clients to access
Windows Update.

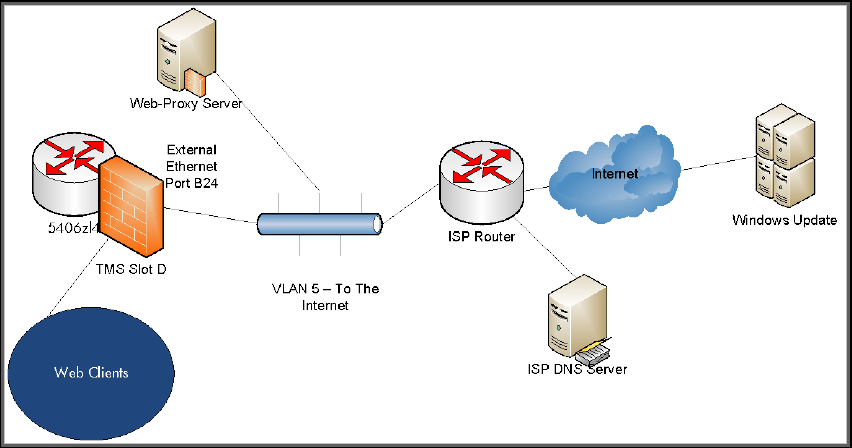

As a refresher, here is another look at our network diagram. Our web clients are on the
10.0.0/24 subnet, which is not publicly routable.
Figure 23
We need to translate those private IP addresses to a public IP address that is on VLAN 5.
Let’s setup a NAT policy. We are setting up a NAT translation for any service, any
source IP address, to any destination IP address where the source IP address will be
changed to the Routed VLAN IP address (VLAN 5’s IP address in this example).
