Page 91
Note: The configuration here is using default NAT configuration and will work
for this example design but additional NAT configuration may be required for
your configuration. For additional direction on NAT configuration, see the
various sections discussing NAT in the HP ProCurve Threat Management
Services zl Module Management and Configuration Guide.

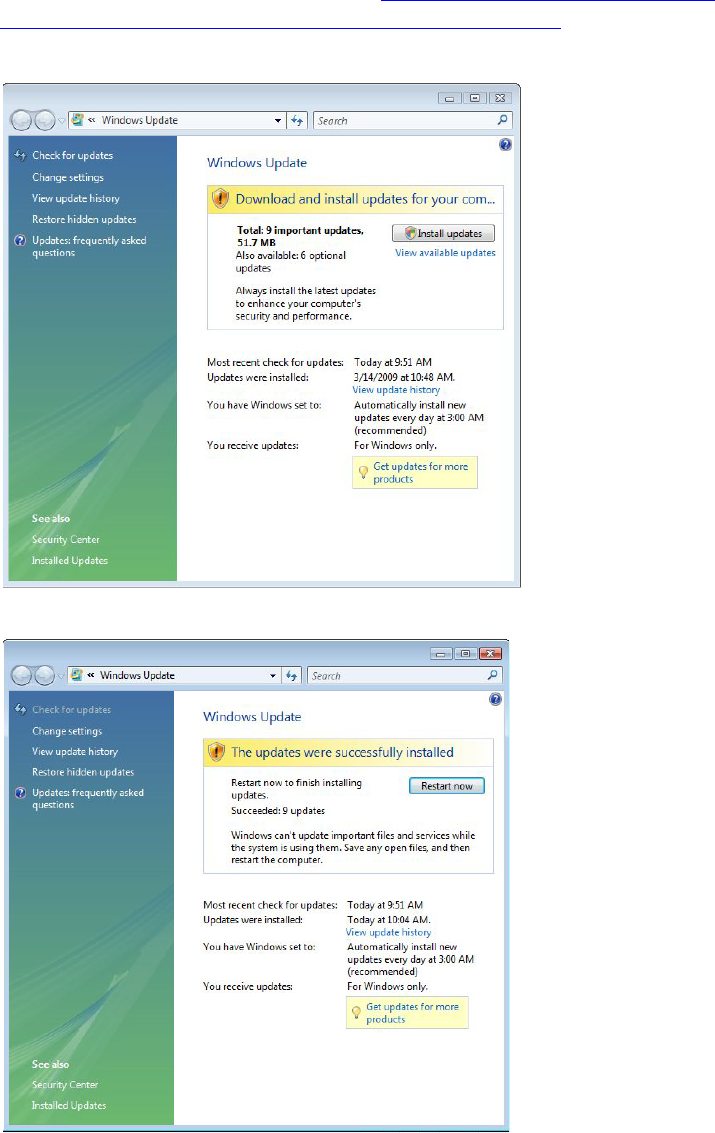

From one of our web clients, we can now access the Internet for Windows Update!
The download worked!
Once again, be sure to “Save” your work!
