2-15

Configuring the ProCurve Wireless Edge Services xl Module

Management Interfaces

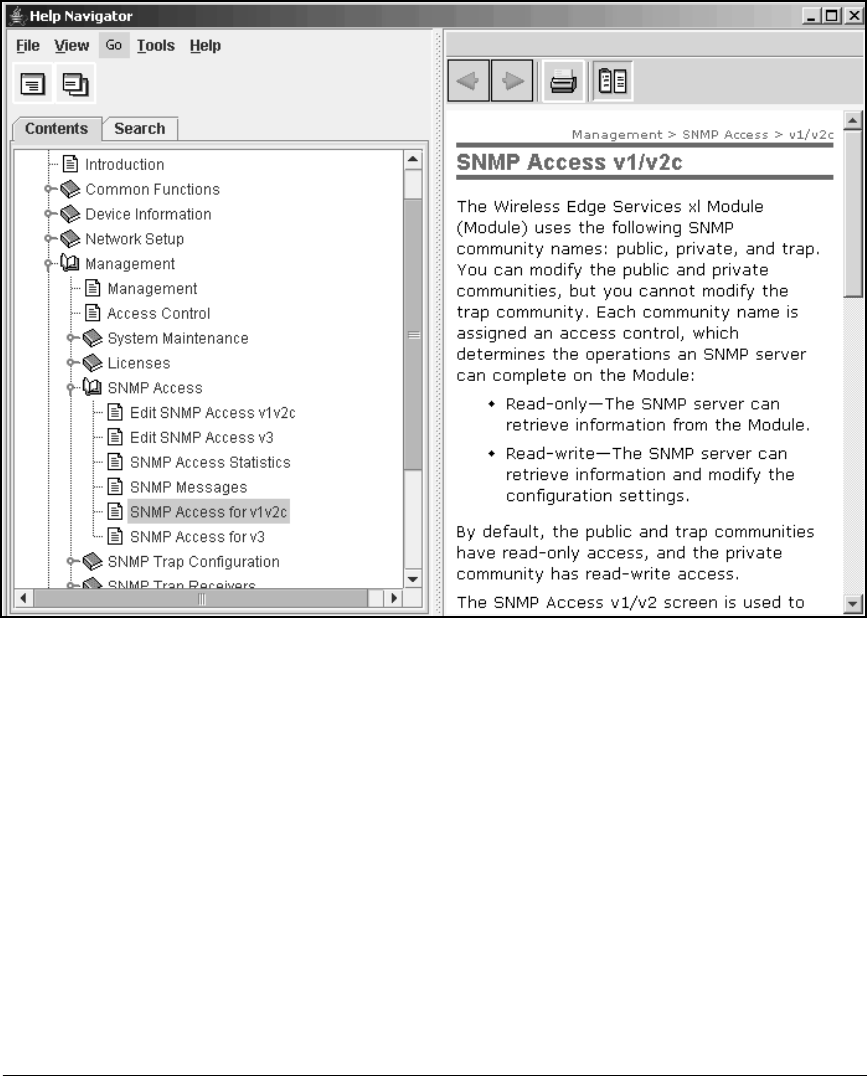

Figure 2-5. Help Navigator Screen

From the Help Navigator screen, you can select one of the following tabs:

■ Content—The Content tab provides a list of available topics. You simply

double-click a topic to view the Help information.

■ Search—The Search tab allows you to enter keywords or Boolean expres-

sions to find all the information about a specific topic. When the results

of the search are listed, select one of the topics and click the Open button

to view the Help information.
