2-146

Configuring the ProCurve Wireless Edge Services xl Module

Enabling Secure Network Time Protocol (NTP)

Applying ACLs to NTP Services

For additional security, you can set access controls on the NTP messages that

your Wireless Edge Services xl Module receives. The module only accepts a

particular type of message if the ACL applied to that type permits it.

You will first need to configure the ACLs for NTP resource access before

completing this task. (See Chapter 7: Access Control Lists (ACLs). Use

standard IP ACLs. Each ACL should permit the IP addresses of devices that

are allowed a particular type of NTP access. For ACLs used with Secure NTP,

the ACL IDs must be numeric (not strings).

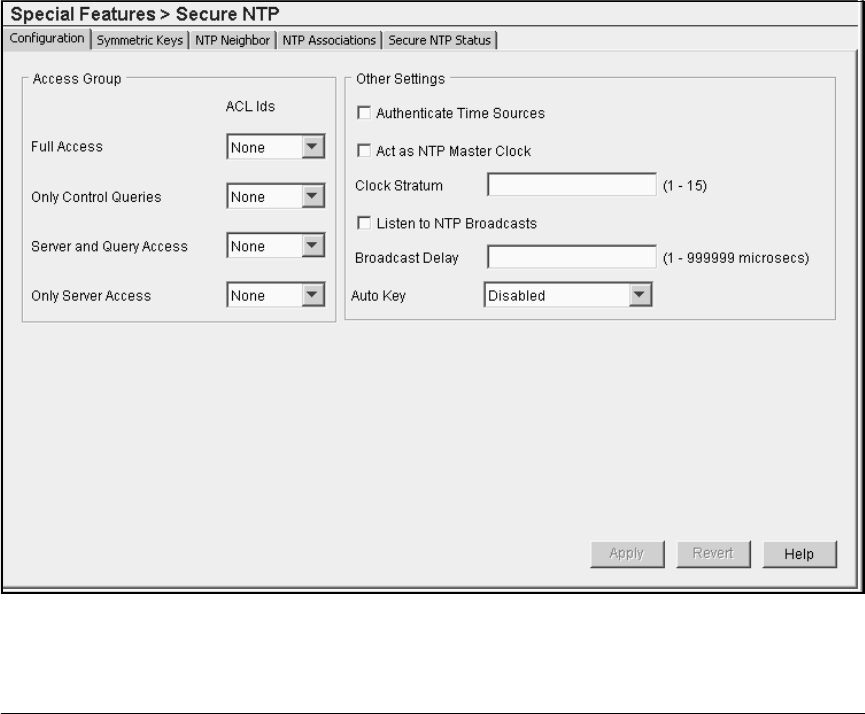

To apply the access controls, move to the Special Features > Secure NTP screen.

Then, enter the index numbers for the appropriate ACLs in the ACL Ids fields

in the Access Group section of the screen.

Figure 2-90. Applying ACLs to NTP Services
