5-22

Web Authentication for Mobile Users

Configuring Web-Auth

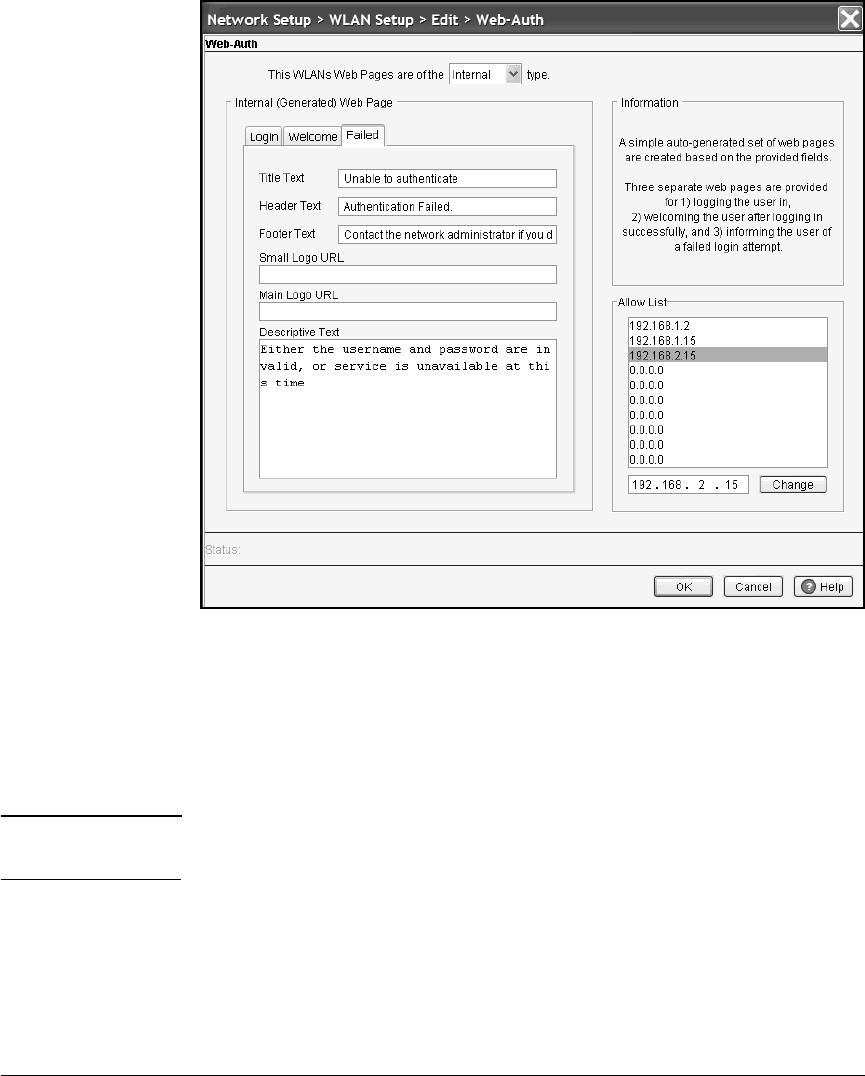

Figure 5-15. Configuring the Failed Page

b. In the Title Text field, accept the default text shown on the screen, or

change the text as needed.

c. In the Header Text field, accept the default text shown on the screen,

or enter the text that you want users to see if they fail to log in. (See

Figure 5-16.)

Note If you customize the Header Text, Footer Text, or Descriptive Text fields, you can

enter a maximum of 1,024 characters.

d. In the Footer Text field, accept the default text shown on the screen,

or enter the text that you want to be displayed at the bottom of the

failed page. (See Figure 5-16.) For example, you may want to add the

extension that users should call if they cannot log in.
