Configuring Network Address Translation (NAT)

Configuring NAT

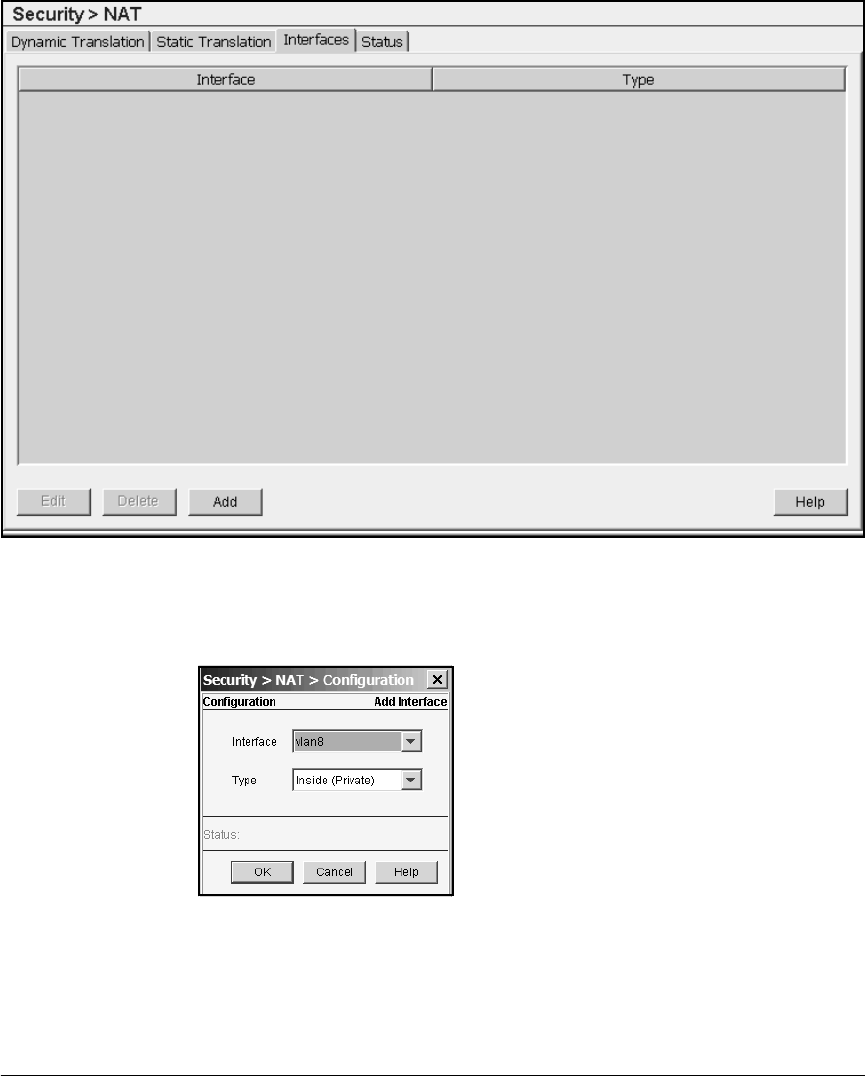

Figure 8-10. Security > NAT > Interfaces Screen

2. Click the Add button. The Add Interface screen is displayed.

Figure 8-11. Add Interface Screen

3. In the Interfaces field, use the drop-down menu to select an interface

configured on the module.
