10-8

Redundancy Groups

High Availability for Wireless Services

compare their redundancy group settings to ensure that they are the same.

If the modules are not using the same settings, they cannot establish a

functioning redundancy group.

■ Online state—If the modules can reach each other and they are using

the same redundancy group settings, they change their status to online.

In this state, a standby module can take over for an active module if the

active module becomes unavailable. However, you must configure the

standby modules to provide wireless services, as explained in “Creating

Matching Configurations for the Redundancy Group” on page 10-9.

If redundancy is not enabled for a module, it is in the disabled state.

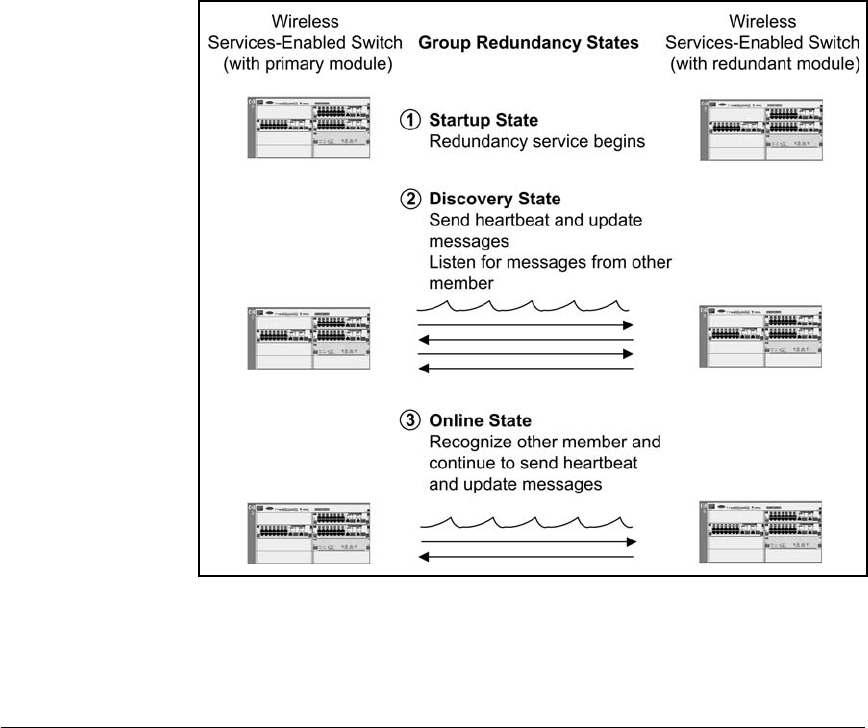

Figure 10-2 illustrates the process of establishing a redundancy group

between two modules.

Figure 10-2. Stages of Establishing a Redundancy Group
