13-44

Wireless Network Management

AP Detection

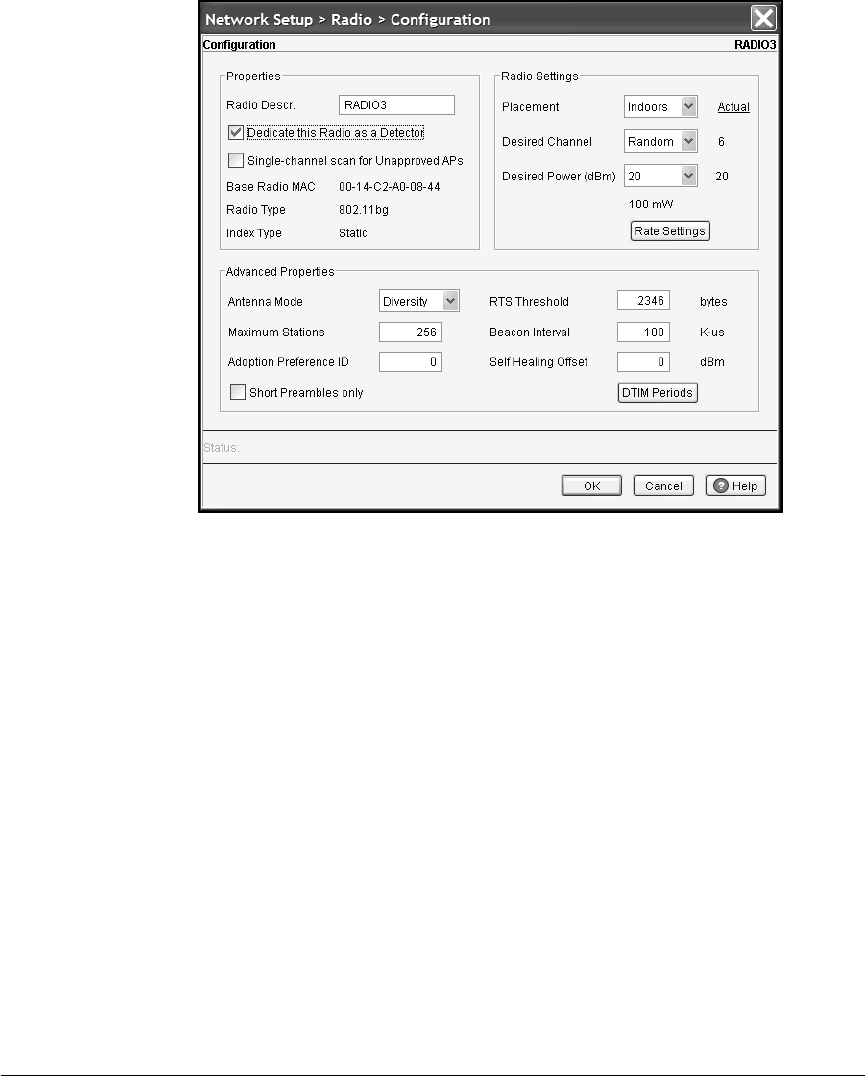

Figure 13-29.Dedicating a Radio as a Detector

d. On the radio’s Configuration screen, check the option that you want

for AP detection:

– Dedicate this Radio as a Detector

– Single-channel scan for Unapproved APs

e. Click the OK button.
