Configuring the GbE Interconnect Switch using the Menu-driven Interface

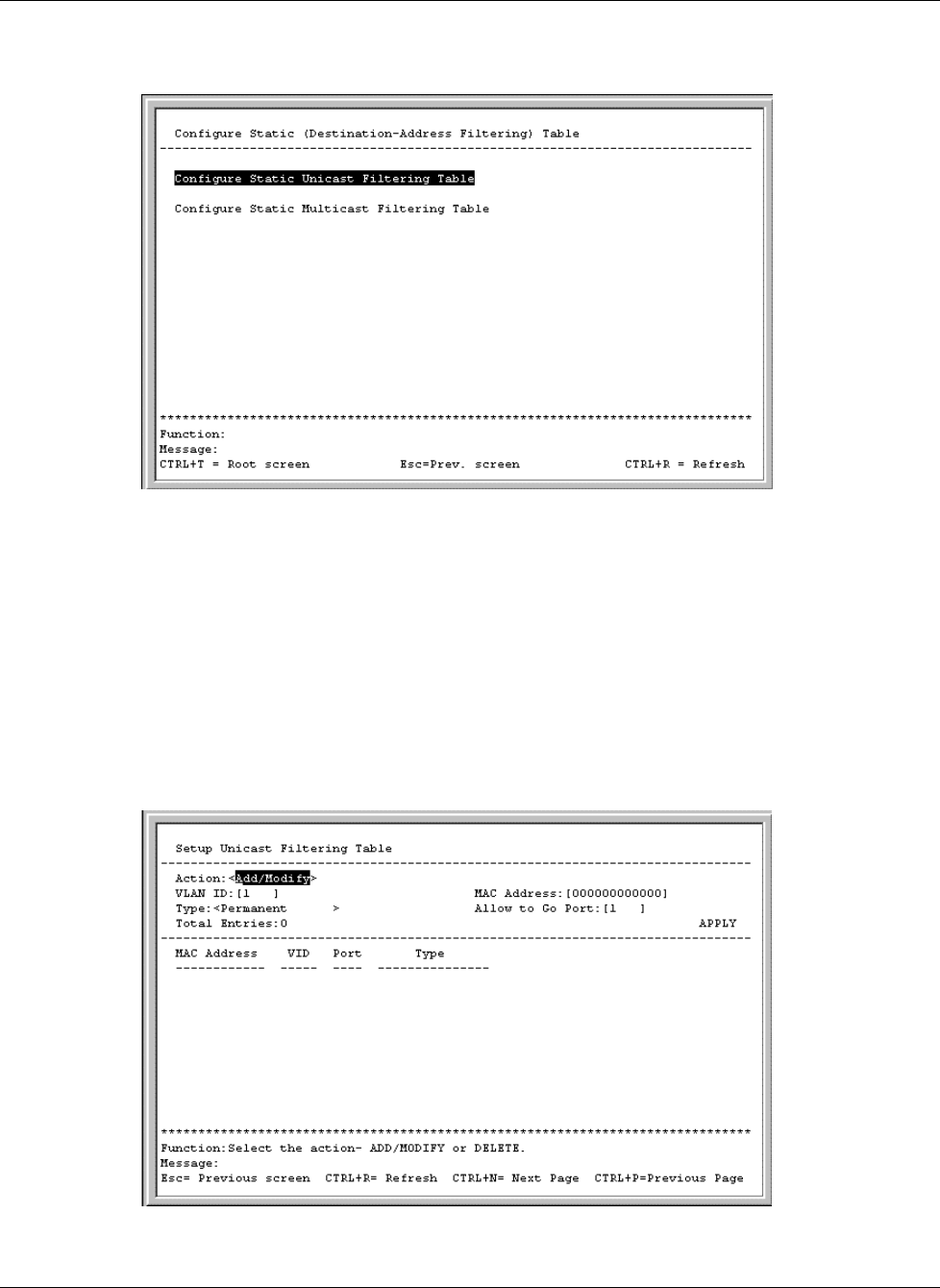

2. Press the Enter key. The following menu is displayed.
The Configure Static (Destination-Address Filtering) Table menu allows you to access
screens to create, modify, and delete both the Static Unicast Filtering Table and the Static
Multicast Filtering Table.
Adding Unicast Filter Actions
To configure the Static Unicast Table:
1. Highlight Configure Static Unicast Table on the Configure Static
(Destination-Address Filtering) Table menu.
2. Press the Enter key. The following screen is displayed.
3. Toggle the Action field to Add/Modify.
2-24 HP ProLiant BL p-Class GbE Interconnect Switch Menu-driven Interface Reference Guide
