NOTE: To delete the unicast filter action for a VLAN, toggle the Action field to Delete.
4. Type the VID in the VLAN ID field.
5. Type the MAC address to be statically entered in the forwarding table in the MAC
Address field.
6. Toggle the Type field to Permanent or DeleteOnReset, to set the unicast filter type.
Permanent maintains the filter permanently, until reconfigured. DeleteOnReset deletes
the filter when the port is reset.
7. Type the port number in the Allow to Go Port field.
8. Highlight APPLY.
9. Press the Enter key.
IMPORTANT: To save the configuration settings permanently, you must enter them into NVRAM
using the Save Changes option on the main menu. Refer to the “Saving Changes” section earlier
in this chapter.
Adding Multicast Filter Actions
To edit the Multicast Filtering settings:
1. Highlight Configure Static Multicast Filtering Table on the Configure Static
(Destination-Address Filtering) Table.

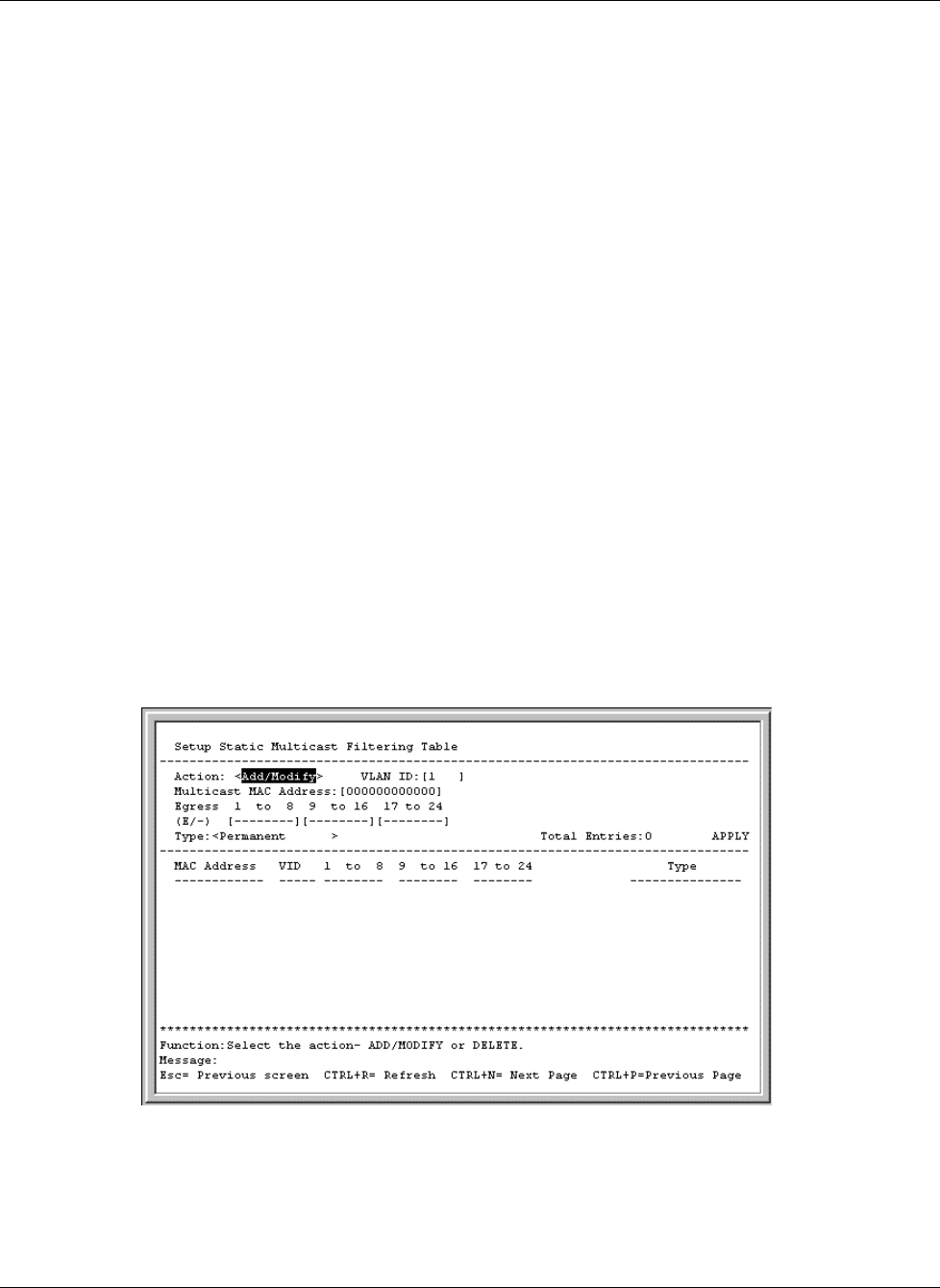

2. Press the Enter key. The following screen is displayed.
3. Toggle the Action field to Add/Modify.
4. Type the VID number of the VLAN that will be receiving the multicast packets in the
VLAN ID field.
5. Type the MAC address of the multicast source in the Multicast MAC Address field.
