Configuring the GbE Interconnect Switch using the Menu-driven Interface
To configure IGMP Snooping:
1. Highlight Configure IGMP Snooping on the Configuration menu.

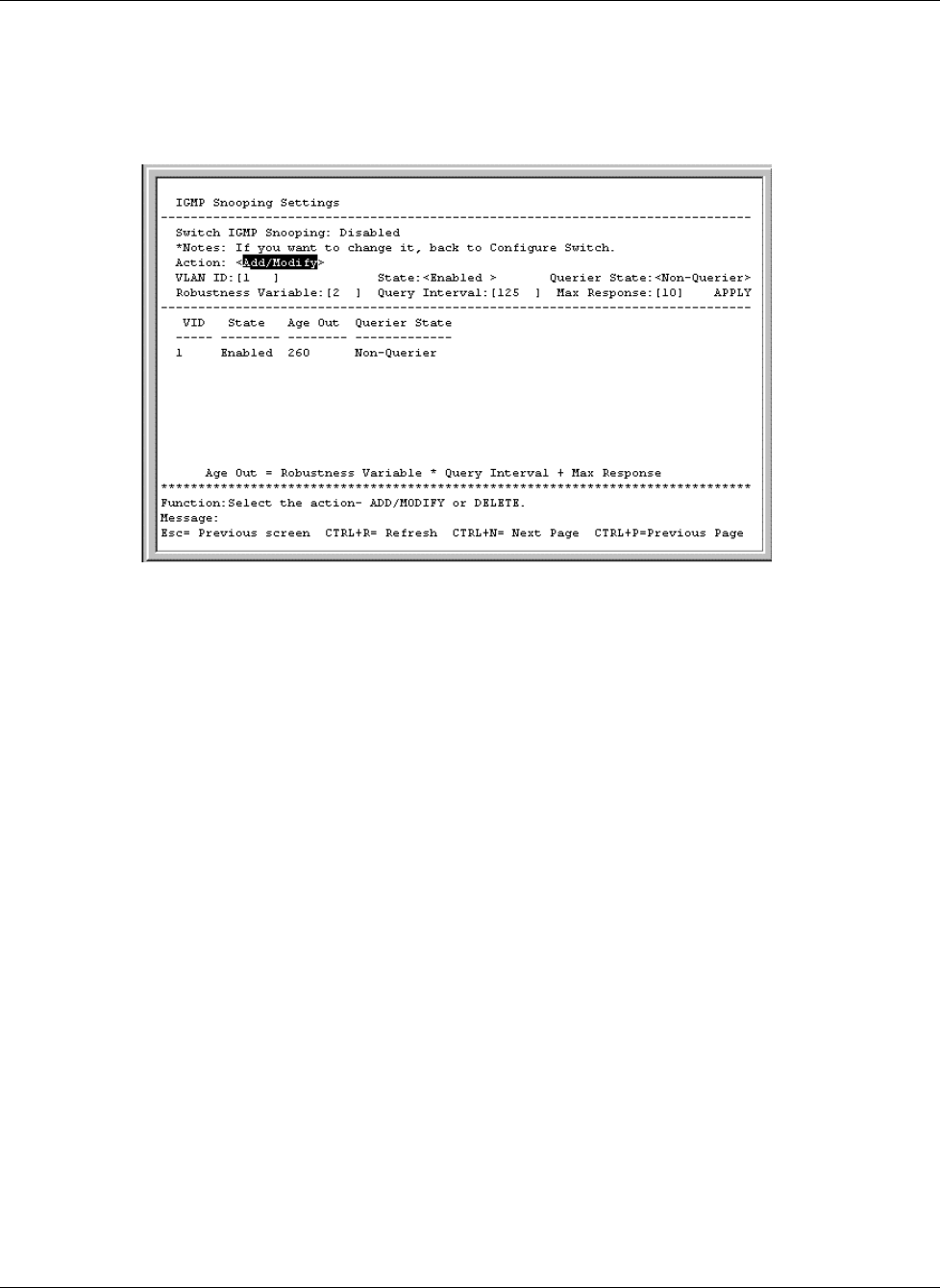

2. Press the Enter key. The IGMP Snooping Settings screen is displayed.
The top line displays if IGMP Snooping is enabled or disabled globally on the GbE
Interconnect Switch.
If IGMP Snooping is enabled, you can set the following:
— Action—Toggle to Add/Modify.
— VLAN ID—Type the VLAN ID on which you want to enable IGMP snooping.
— State—Toggle to Enabled to enable IGMP snooping on the VLAN.
— Querier State—Toggle between Non-Querier, V1-Querier, and V2-Querier. This
setting is used to specify the IGMP version (1 or 2) that is used by the IGMP
interface when making queries.
— Robustness Variable—Enter a value between 2 and 255, with larger values being
specified for subnetworks that are expected to lose larger numbers of packets.
— Query Interval—Enter a value between 1 and 65,500 seconds, with a default of
125 seconds. This setting specifies the length of time between sending IGMP queries.
— Max Response—Set the maximum amount of time allowed before sending an IGMP
response report. A value between 1 and 25 seconds can be entered; the default is
10 seconds.
3. After making your changes, highlight APPLY.
4. Press the Enter key.
IMPORTANT: To save the configuration settings permanently, you must enter them into NVRAM
using the Save Changes option on the main menu. Refer to the “Saving Changes” section earlier
in this chapter.
2-36 HP ProLiant BL p-Class GbE Interconnect Switch Menu-driven Interface Reference Guide
