Configuring the GbE Interconnect Switch using the Menu-driven Interface
To configure port mirroring:
1. Highlight Configure Port Mirroring on the Configuration menu.

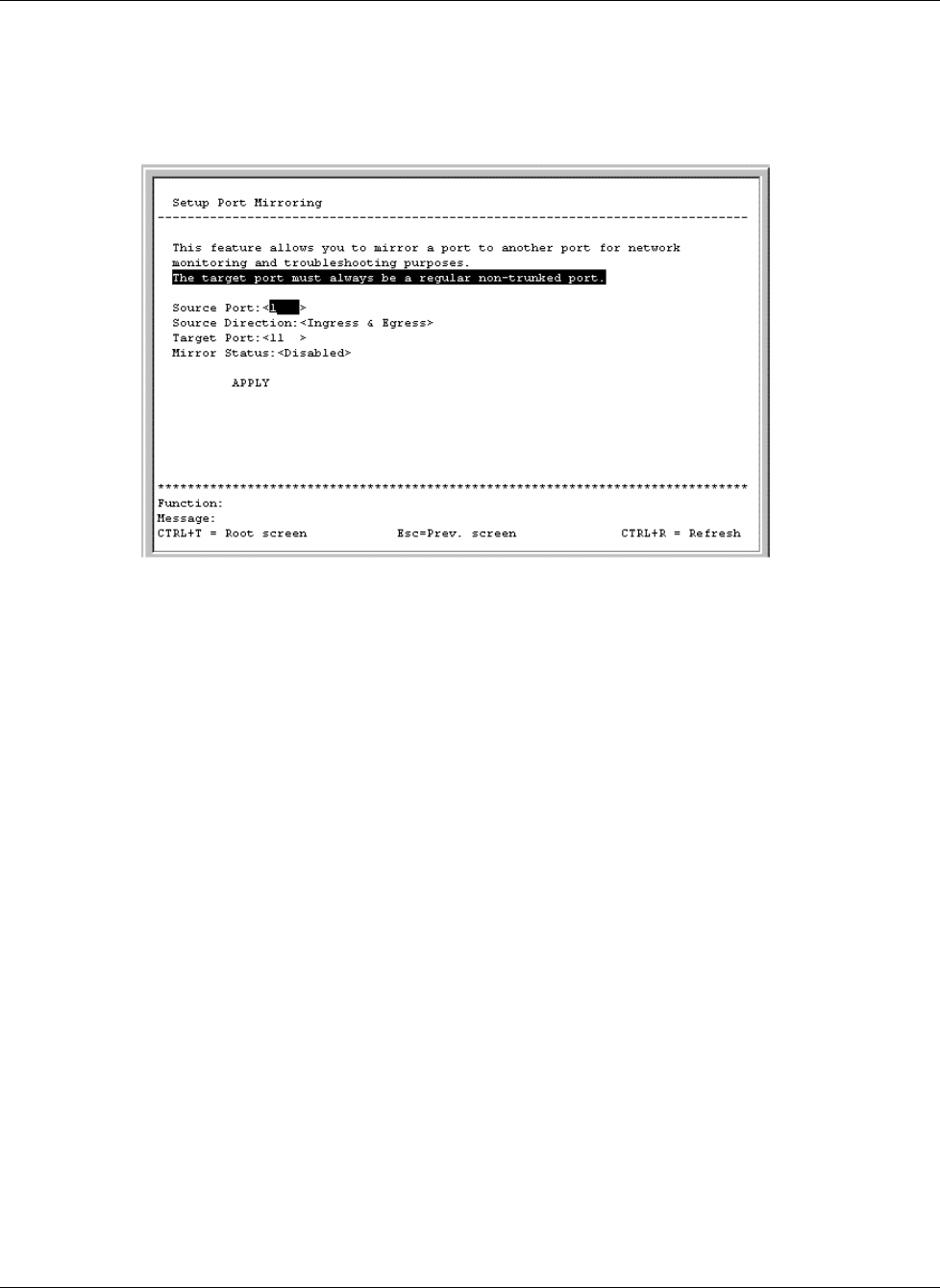

2. Press the Enter key. The following screen is displayed.
3. In the Source Port field, toggle to the number of the port from which you want to copy
frames.
4. In the Source Direction field, toggle to the desired direction: Ingress, Egress, or Ingress
& Egress.
5. In the Target Port field, toggle to the port that receives the copies from the source port.
The target port is where you connect a monitoring or troubleshooting device such as a
sniffer or an RMON probe.
6. Toggle the Mirror Status field to Enabled.
7. Highlight APPLY.
8. Press the Enter key.
IMPORTANT: To save the configuration settings permanently, you must enter them into NVRAM
using the Save Changes option on the main menu. Refer to the “Saving Changes” section earlier
in this chapter.
