Configuring the GbE Interconnect Switch using the Menu-driven Interface
Setting Port Priority
To assign port priority:
1. Highlight Configure Default Priority on the Configure Class of Service, Default
Priority and Traffic Class menu.

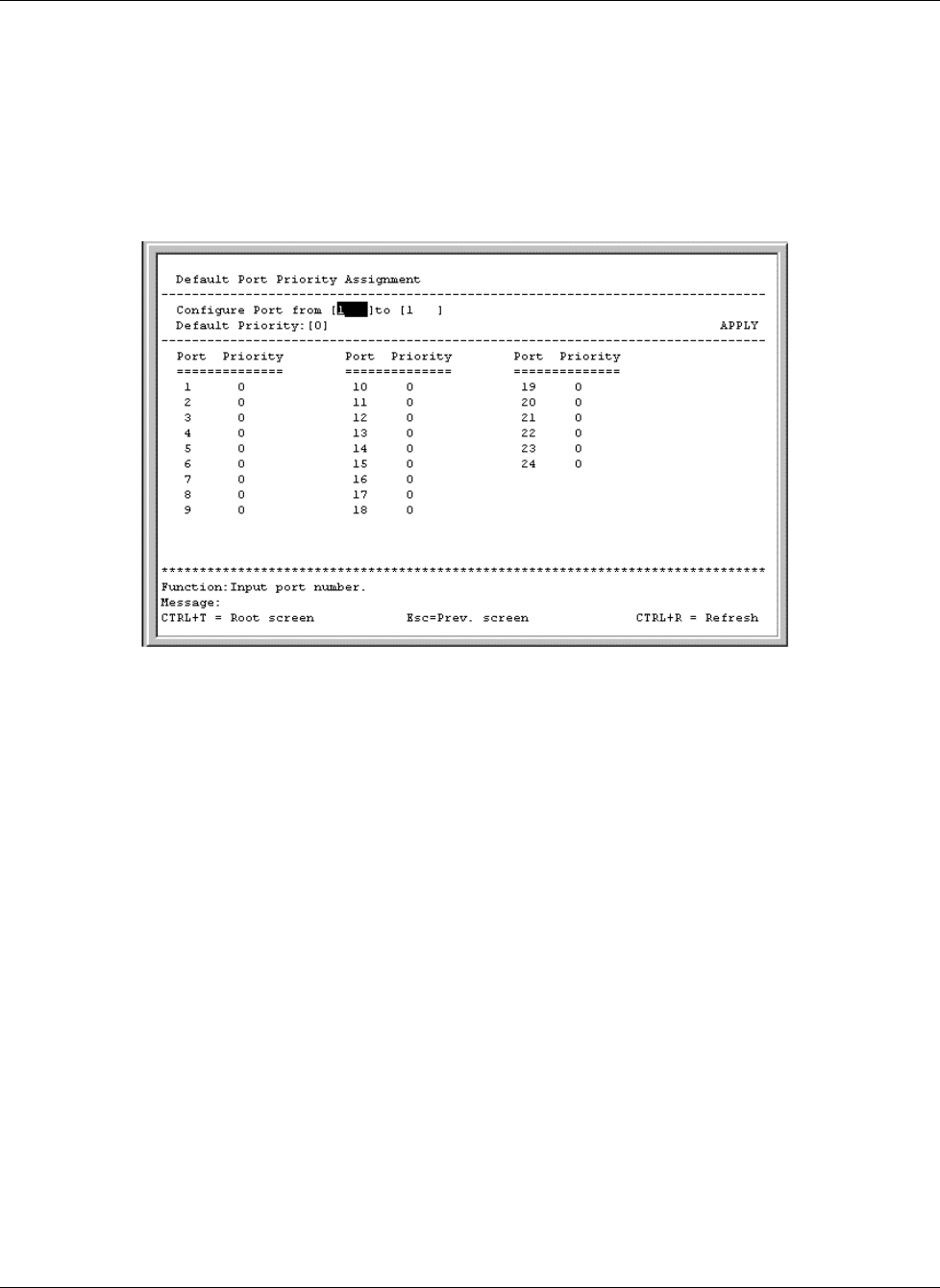

2. Press the Enter key. The following screen is displayed.
3. Type the port range in the Configure Port fields.
4. Type the port priority in the Default Priority field.
5. Highlight APPLY.
6. Press the Enter key.
IMPORTANT: To save the configuration settings permanently, you must enter them into NVRAM
using the Save Changes option on the main menu. Refer to the “Saving Changes” section earlier
in this chapter.
2-44 HP ProLiant BL p-Class GbE Interconnect Switch Menu-driven Interface Reference Guide
