Configuring the GbE Interconnect Switch using the Menu-driven Interface
Configuring Port Security
To configure security for a specified port or range of ports on the GbE Interconnect Switch:
1. Highlight Configure Port Security on the Configuration menu.

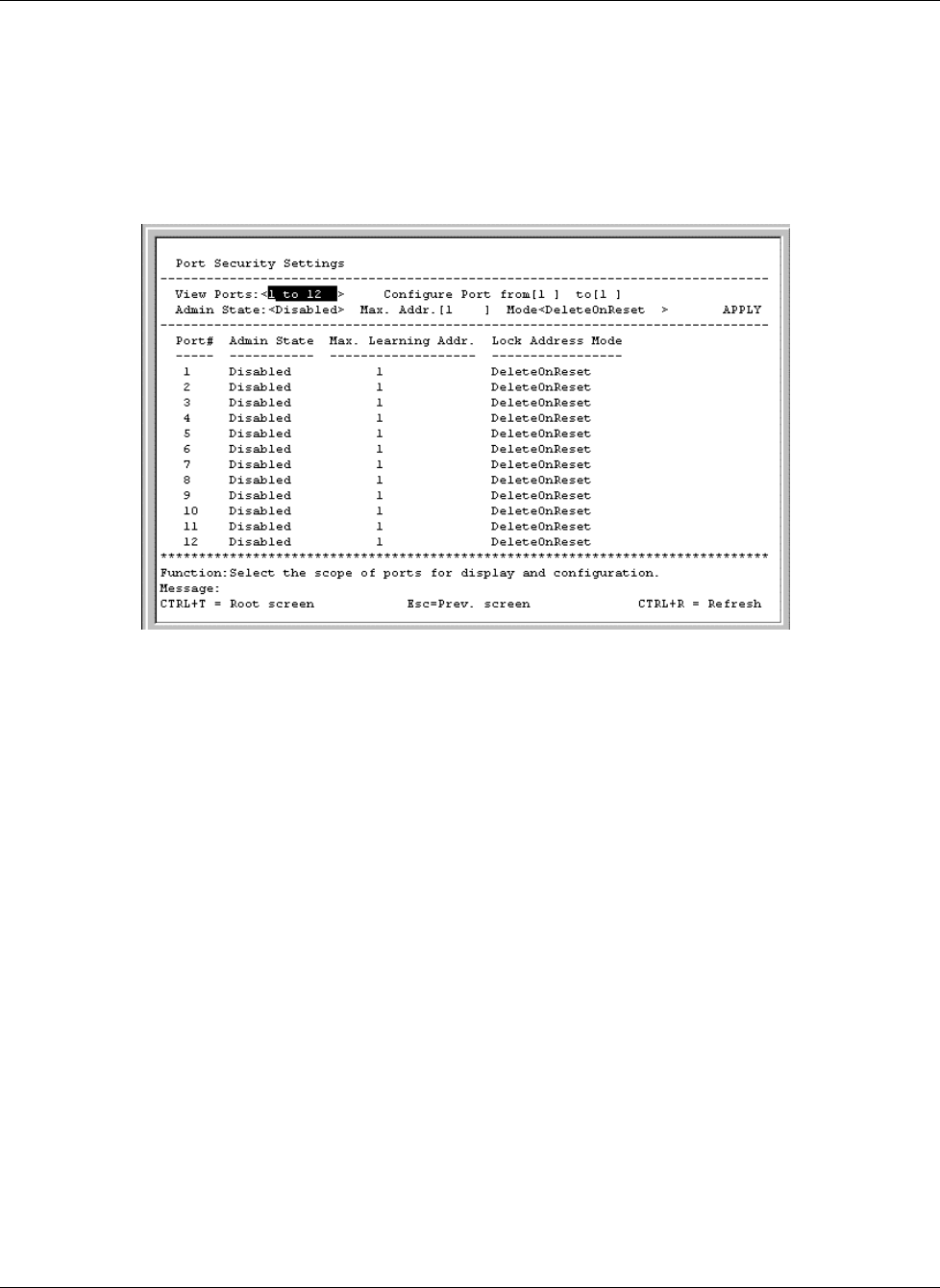

2. Press the Enter key. The following screen is displayed.
3. Toggle the View Ports field to the port range that you want to view.
4. Type the port number or range of numbers to configure in the Configure Port fields.
5. Toggle the Admin State field to Enabled to enable port security on the ports.
6. Type a number between 1 and 10 in the Max. Addr. field to set the maximum number of
addresses that can be learned.
7. Toggle to the mode that you want in the Mode field: DeleteOnReset or
DeleteOnTimeout.
8. Highlight APPLY.
9. Press the Enter key.
IMPORTANT: To save the configuration settings permanently, you must enter them into NVRAM
using the Save Changes option on the main menu. Refer to the “Saving Changes” section earlier
in this chapter.
