Configuring the GbE Interconnect Switch using the Menu-driven Interface
Monitoring Port Utilization
To view the port utilization of all the ports on the GbE Interconnect Switch:
1. Highlight Port Utilization on the Network Monitoring Menu.

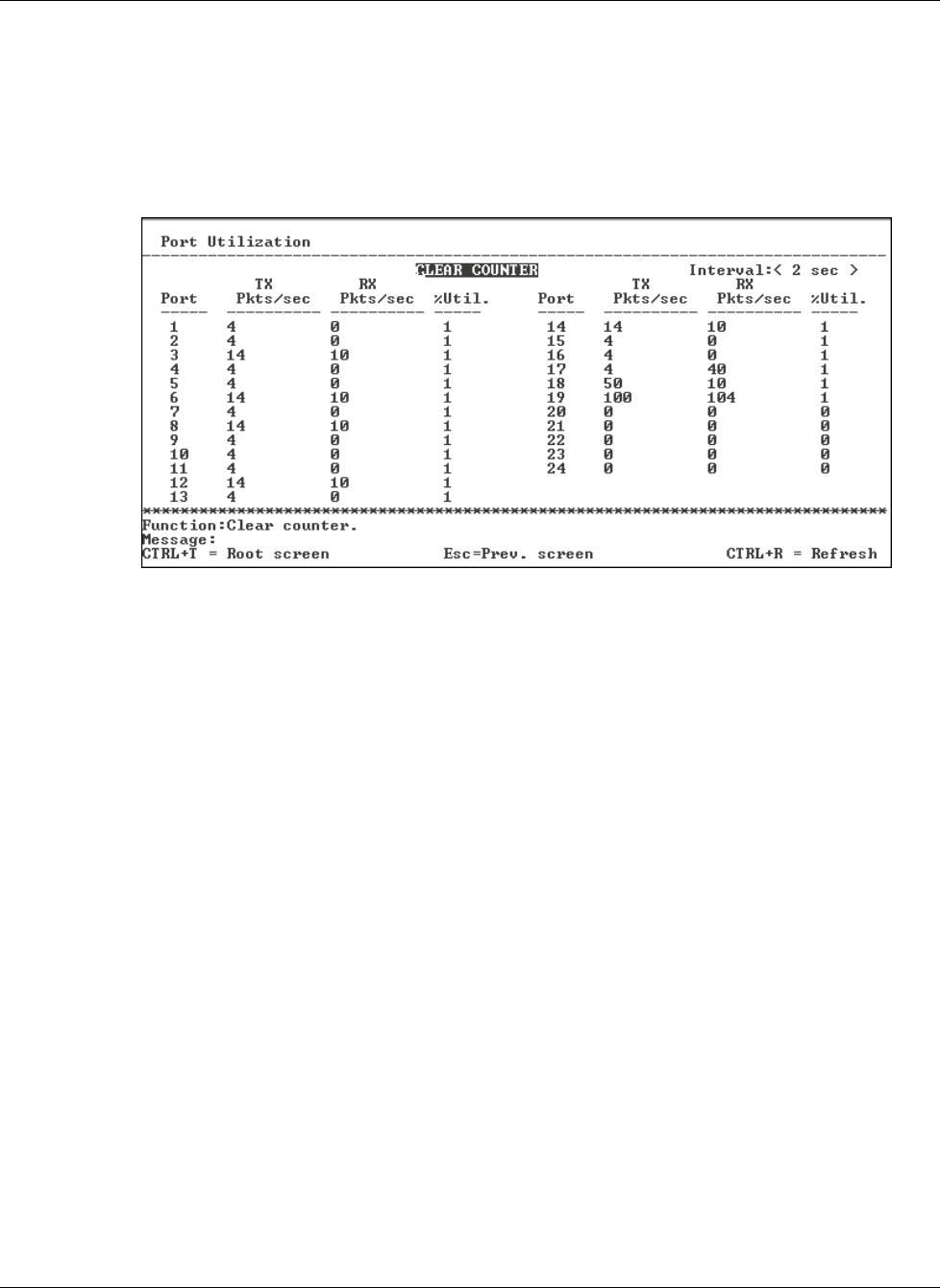

2. Press the Enter key. The following screen is displayed.
The Port Utilization screen displays the number of packets transmitted and received per
second and calculates the percentage of the total available bandwidth being used on the
port (displayed under %Util.).
3. In the Interval field, toggle to select the frequency at which the information on the screen
is refreshed. The default is two seconds.
4. To reset the counters, highlight CLEAR COUNTER.
5. Press the Enter key.
