Configuring the GbE Interconnect Switch using the Menu-driven Interface
Monitoring Trunk Utilization
To view the trunk utilization of all the ports on the GbE Interconnect Switch:
1. Highlight Trunk Utilization on the Network Monitoring Menu.

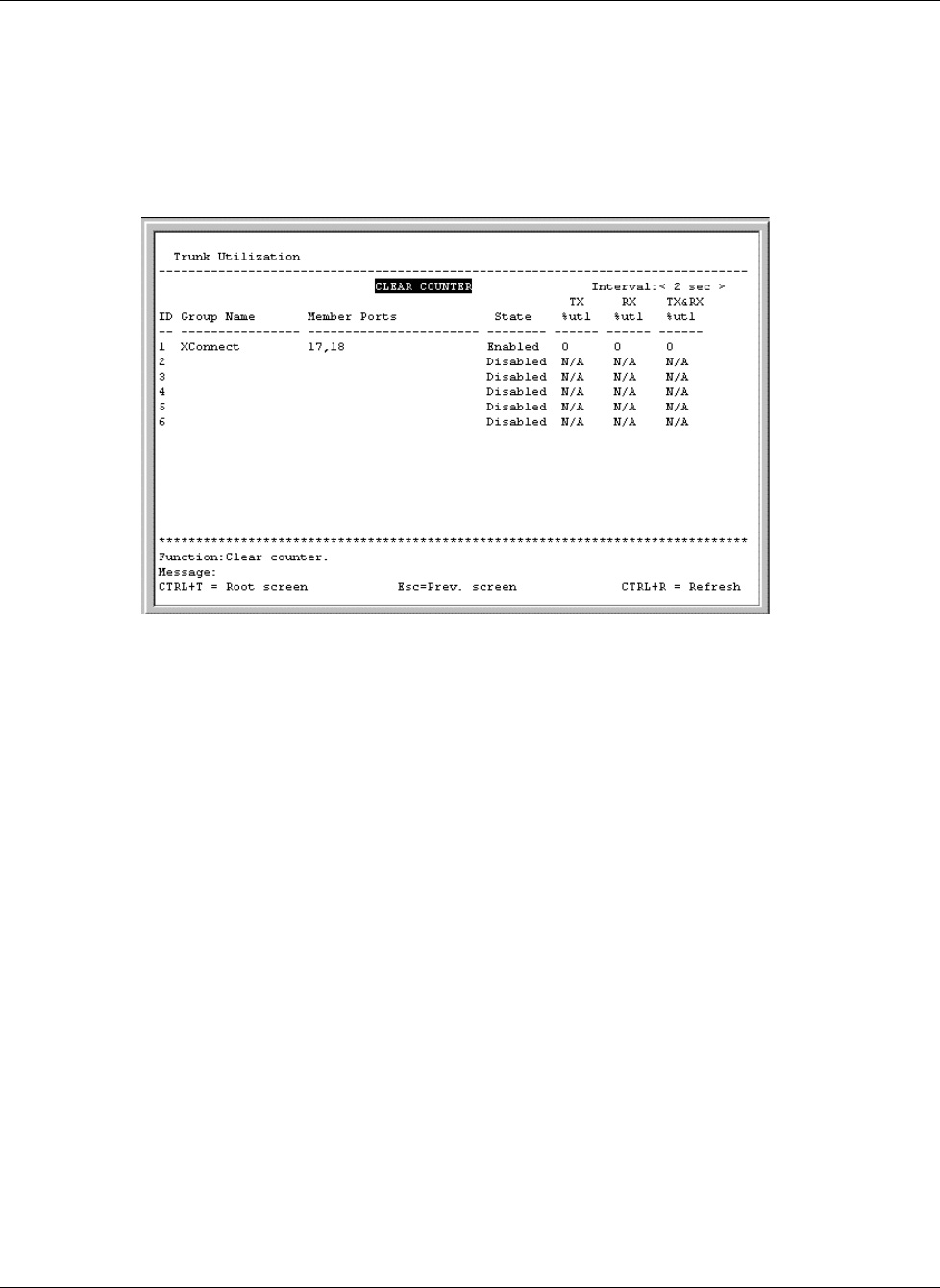

2. Press the Enter key. The following screen is displayed.
The Trunk Utilization window allows you to view three items for an individual port
trunking group: the percentage of packets transmitted, the percentage of packets being
received per second, and the percentage of total available bandwidth being used by the
group.
3. In the Interval field, toggle to select the frequency at which the information on the screen
is refreshed. The default is two seconds.
4. To reset the counters, highlight CLEAR COUNTER.
5. Press the Enter key.
2-54 HP ProLiant BL p-Class GbE Interconnect Switch Menu-driven Interface Reference Guide
