Configuring the GbE Interconnect Switch using the Menu-driven Interface
Monitoring MAC Address Forwarding Table
To view the MAC address forwarding table:
1. Highlight Browse MAC Address on the Network Monitoring Menu.

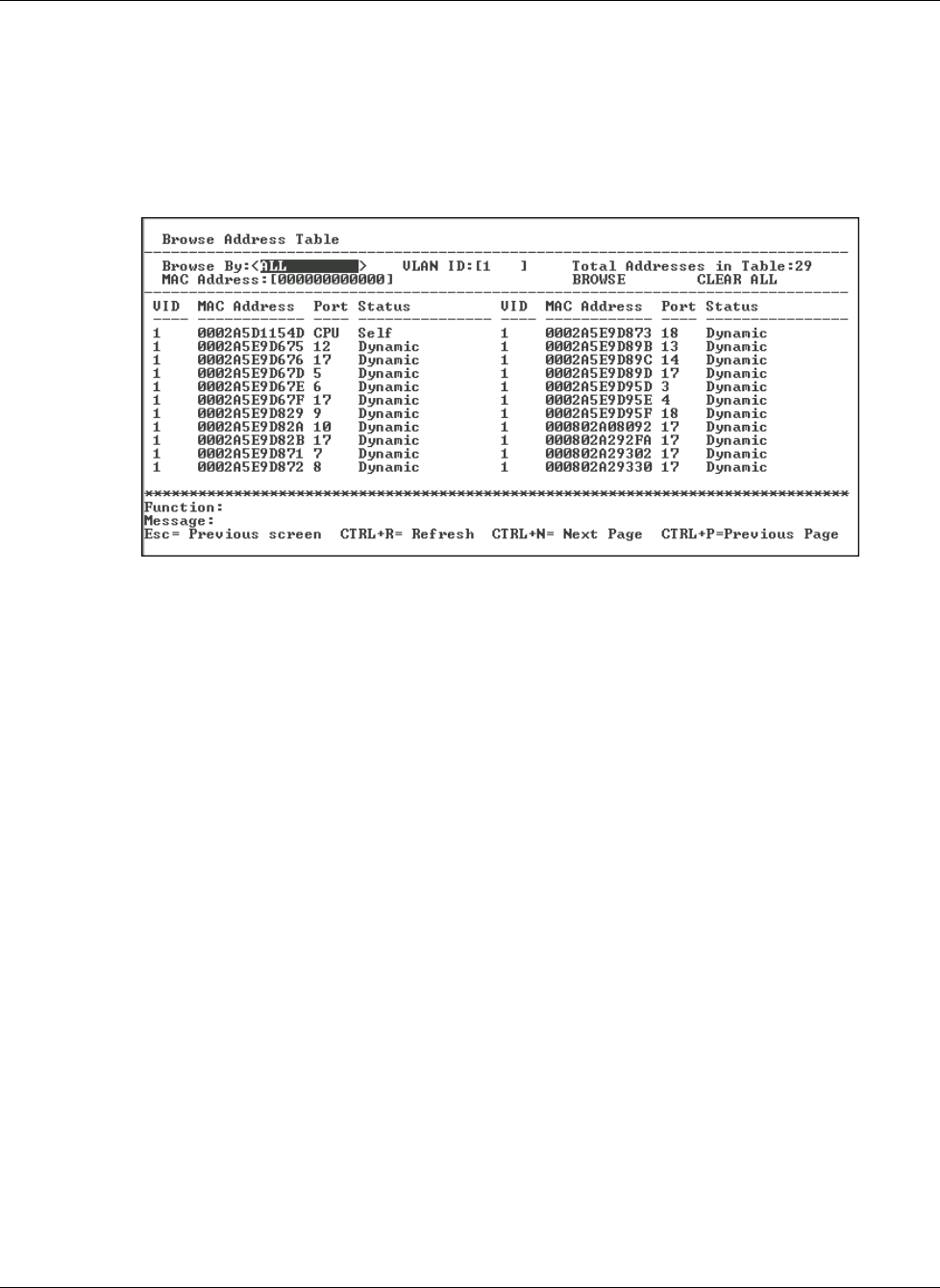

2. Press the Enter key. The following screen is displayed.
3. Toggle the Browse By field between ALL, MAC Address, Port, and VLAN. This
option sets a filter to determine which MAC addresses from the forwarding table are
displayed. ALL specifies no filter.
To search for a particular MAC address:
1. Toggle the Browse By field to MAC Address. A MAC Address field is displayed.
2. Type the MAC address in the MAC Address field, then press the Enter key.
3. Highlight BROWSE.
4. Press the Enter key to initiate the browsing action.
5. Highlight CLEAR ALL.
6. Press the Enter key to reset the table counters.
