Configuring the GbE Interconnect Switch using the Menu-driven Interface
Monitoring Dynamic Group Registration Table
To view the Dynamic Group Registration Table:
1. Highlight Dynamic Group Registration Table on the Network Monitoring Menu.

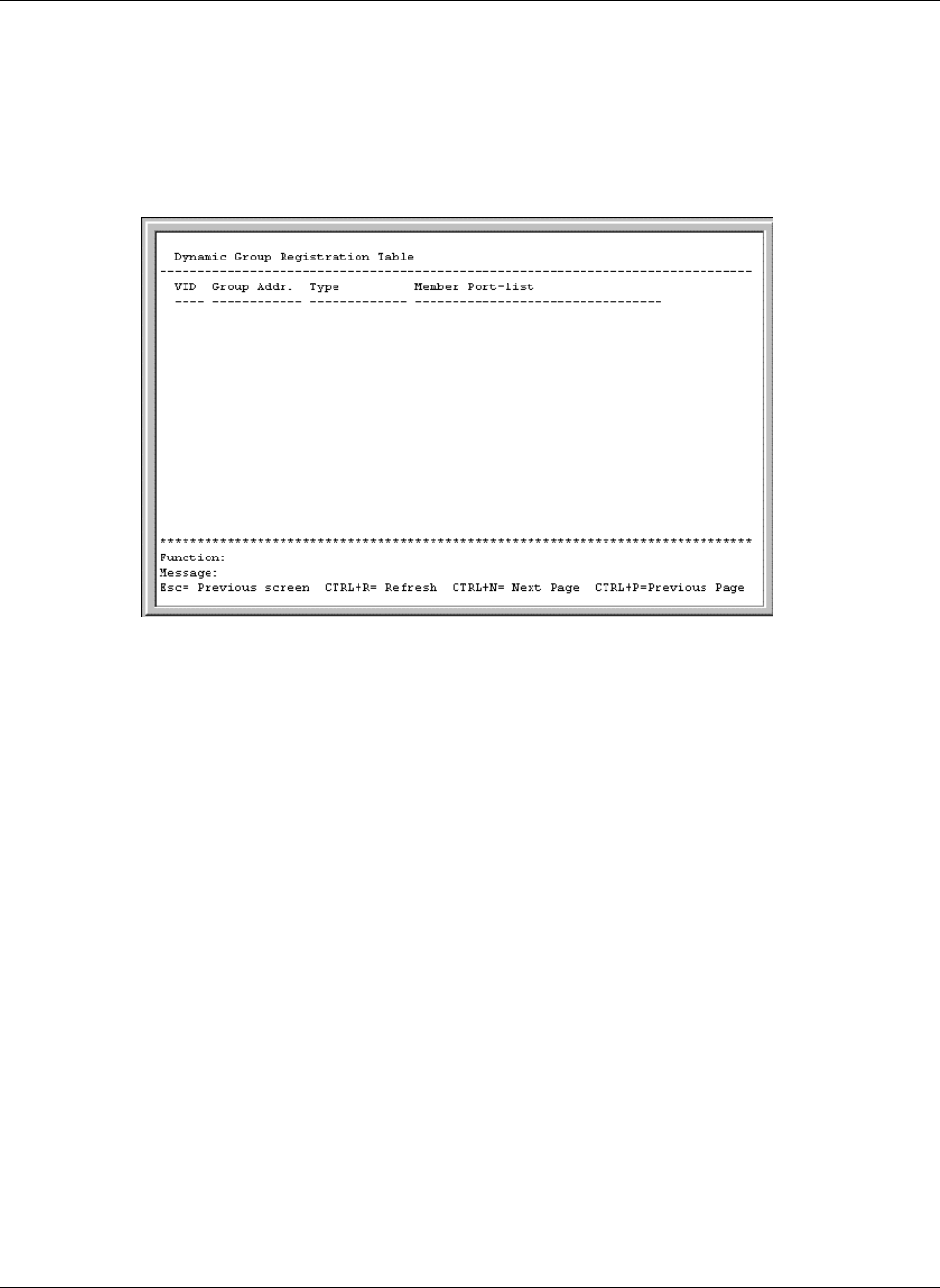

2. Press the Enter key. The following screen is displayed.
The Dynamic Group Registration Table displays filtering information for VLANs
configured into the bridge by local or network management, or learned dynamically. It
specifies the set of ports to which frames received on a VLAN for this forwarding database
(FDB), and containing a specific group destination address, are allowed to be forwarded.
2-60 HP ProLiant BL p-Class GbE Interconnect Switch Menu-driven Interface Reference Guide
