Configuring the GbE Interconnect Switch using the Menu-driven Interface
Upgrading Firmware from a TFTP Server
To upgrade the firmware from a TFTP server:
1. Highlight Upgrade Firmware from TFTP Server on the Switch Utilities menu.

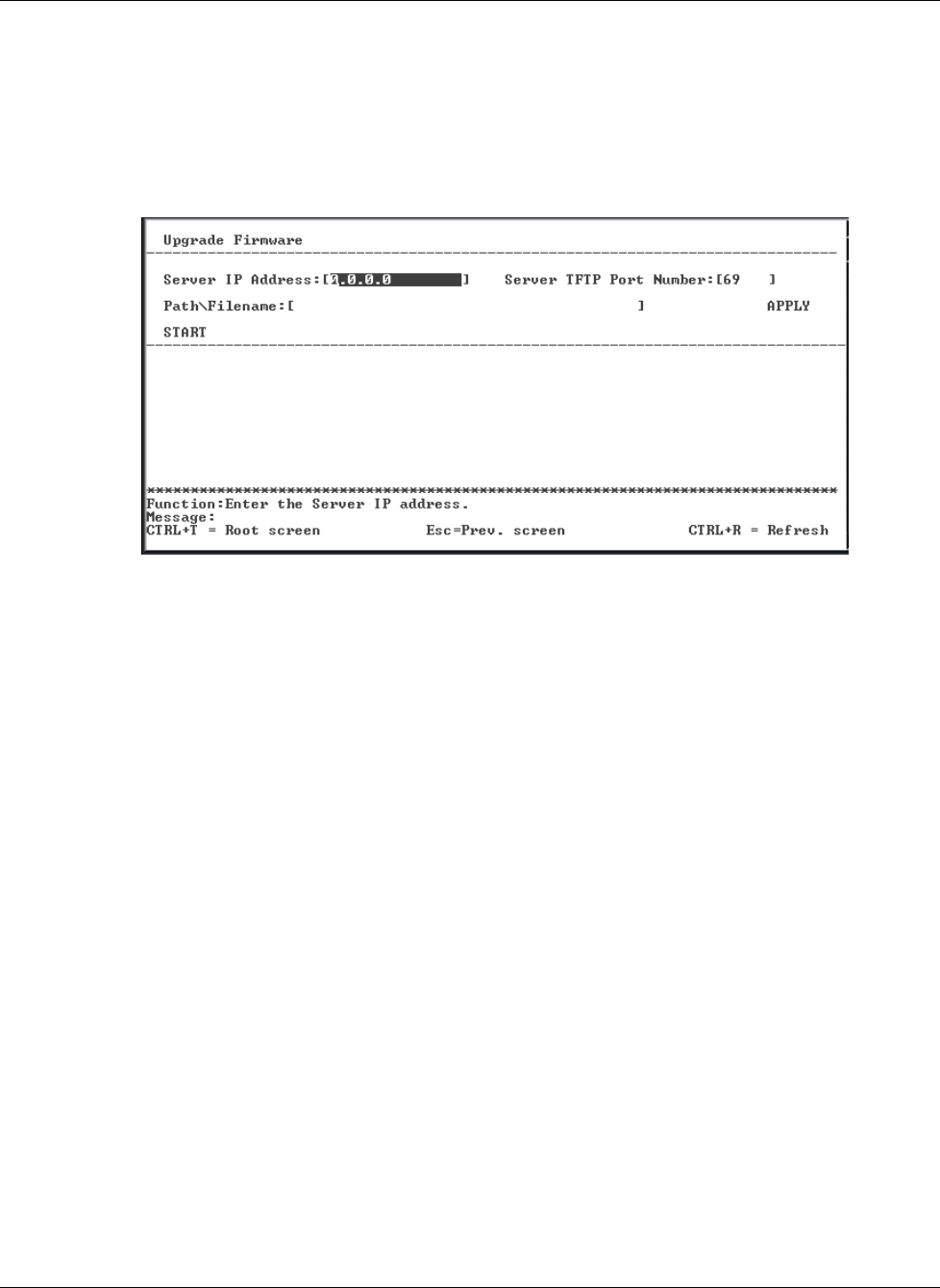

2. Press the Enter key. The following screen is displayed.
3. Type the IP address of the TFTP server in the Server IP Address field.
IMPORTANT: The TFTP server must be on the same IP subnet as the GbE Interconnect Switch.
4. Type the port number of the TFTP server you wish to connect to in the Server TFTP
Port Number field.
5. Type the path and the filename to the firmware file on the TFTP server in the
Path\Filename field.
IMPORTANT: The TFTP server must be running TFTP server software to perform the file transfer.
TFTP server software is included as part of the utilities package.
6. Highlight APPLY.
7. Press the Enter key to record the IP address of the TFTP server.
8. Highlight START.
9. Press the Enter key to initiate the file transfer.
IMPORTANT: To save the configuration settings permanently, you must enter them into NVRAM
using the Save Changes option on the main menu. Refer to the “Saving Changes” section earlier
in this chapter.
IMPORTANT: A downloadable smart component, which further simplifies upgrading the switch
module firmware, is available at the following website:
www.compaq.com/support/servers
HP ProLiant BL p-Class GbE Interconnect Switch Menu-driven Interface Reference Guide 2-65
