Configuring the GbE Interconnect Switch using the Menu-driven Interface
Performing a Ping Test
To test the connection with another network device using Ping:
1. Highlight Ping Test on the Switch Utilities menu.

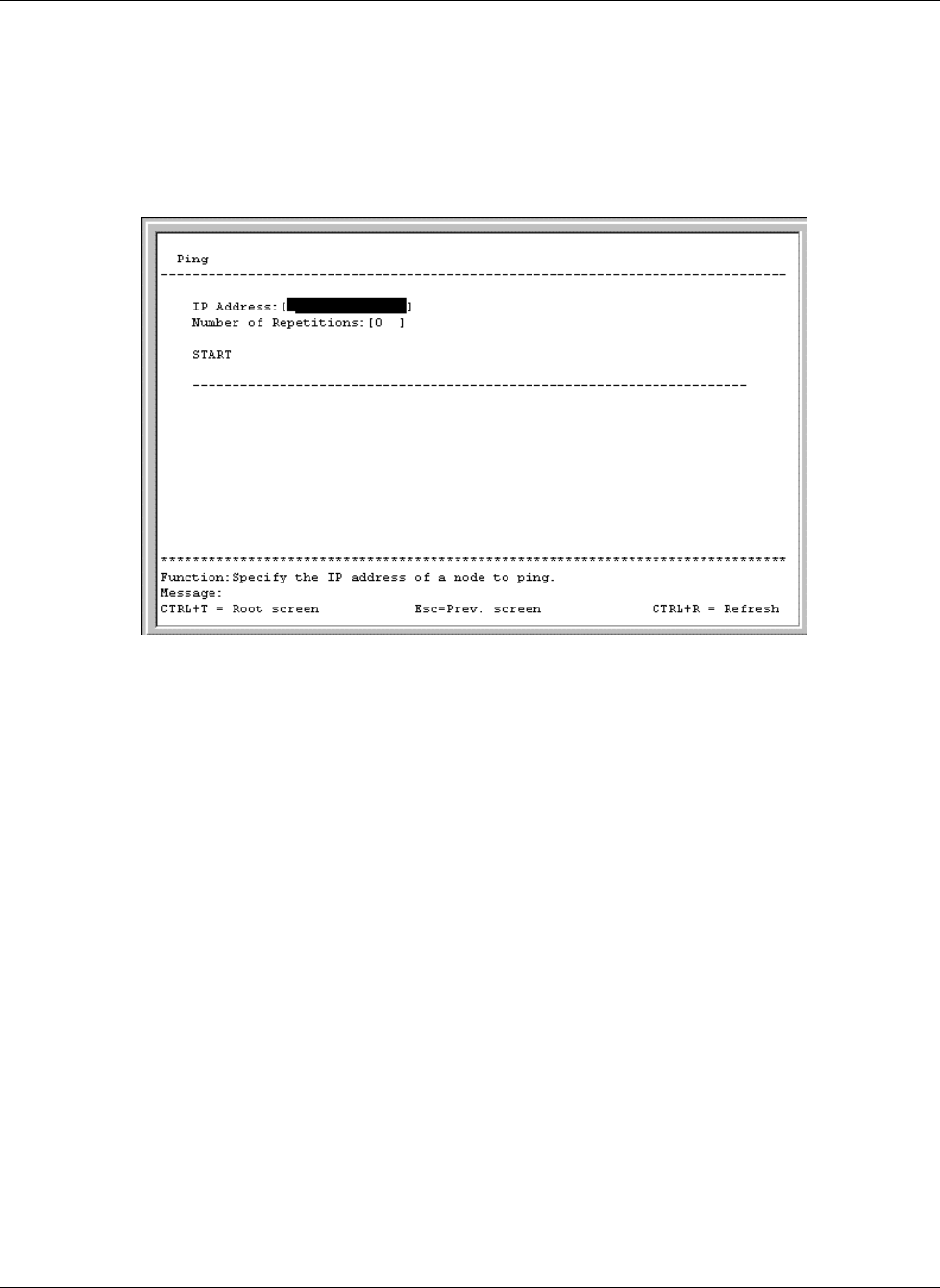

2. Press the Enter key. The following screen is displayed.
3. Type the IP address of the network device to be pinged in the IP Address field.
4. Type the number of test packets to be sent (three is usually enough) in the Number of
Repetitions field.
5. Highlight START.
6. Press the Enter key.
IMPORTANT: To save the configuration settings permanently, you must enter them into NVRAM
using the Save Changes option on the main menu. Refer to the “Saving Changes” section earlier
in this chapter.
