Setup 16

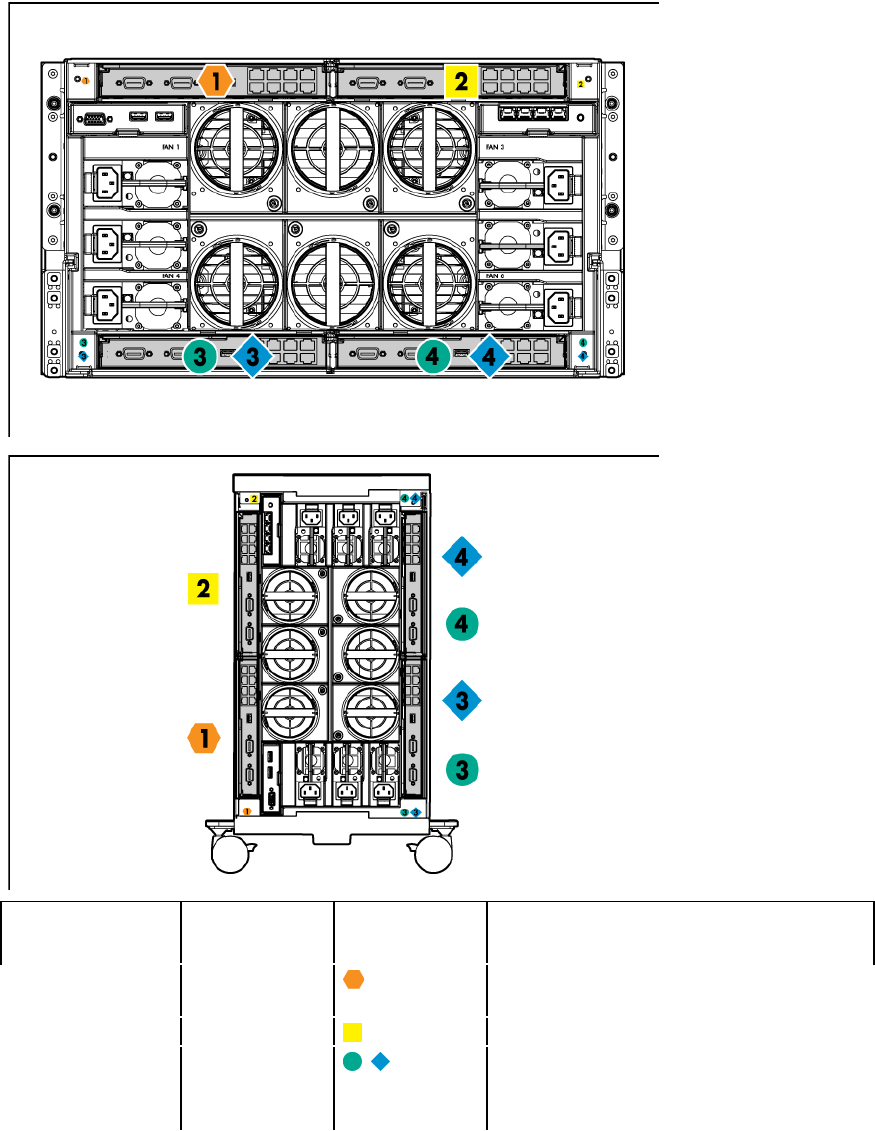

• HP BladeSystem c3000 Enclosure and Tower Enclosure
Server blade signal Interconnect
bay number
Interconnect
bay label
Notes
Flex adapter 1, 2
(embedded)
1
—
Mezzanine 1
2
Four port cards connect to bay 2.
Mezzanine 2
3 and 4
•
Four port cards
•
Ports 1 and 3 connect to bay 3.
•
Ports 2 and 4 connect to bay 4.
•
