Illustrated parts catalog 16
Illustrated parts catalog

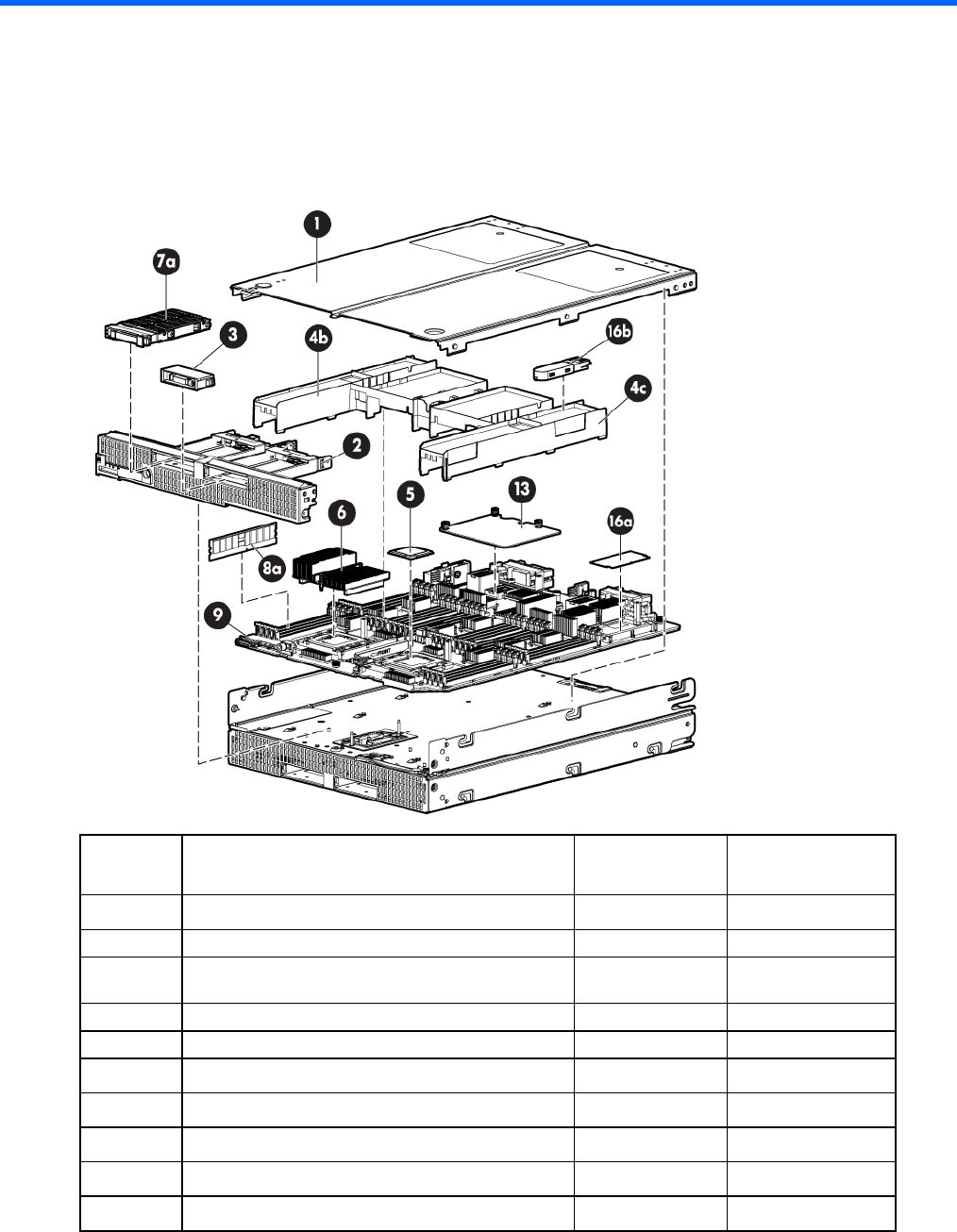

Server blade components (A-side)
Item Description
Spare part
number
Customer self
repair (on page
5
)
Mechanical components
1
Access panel 610101-001 Mandatory
1
2
Front panel/hard drive cage assembly (with
backplane)
610097-001 Mandatory
1
3
Hard drive blank 392613-001 Mandatory
1
4
Hardware and plastics kit 610100-001 Mandatory
1
a) Heatsink blank* — —
b) Left DIMM baffle — —
c) Right DIMM baffle — —
d) Enclosure connector cover* — —
System components
