Illustrated parts catalog 22

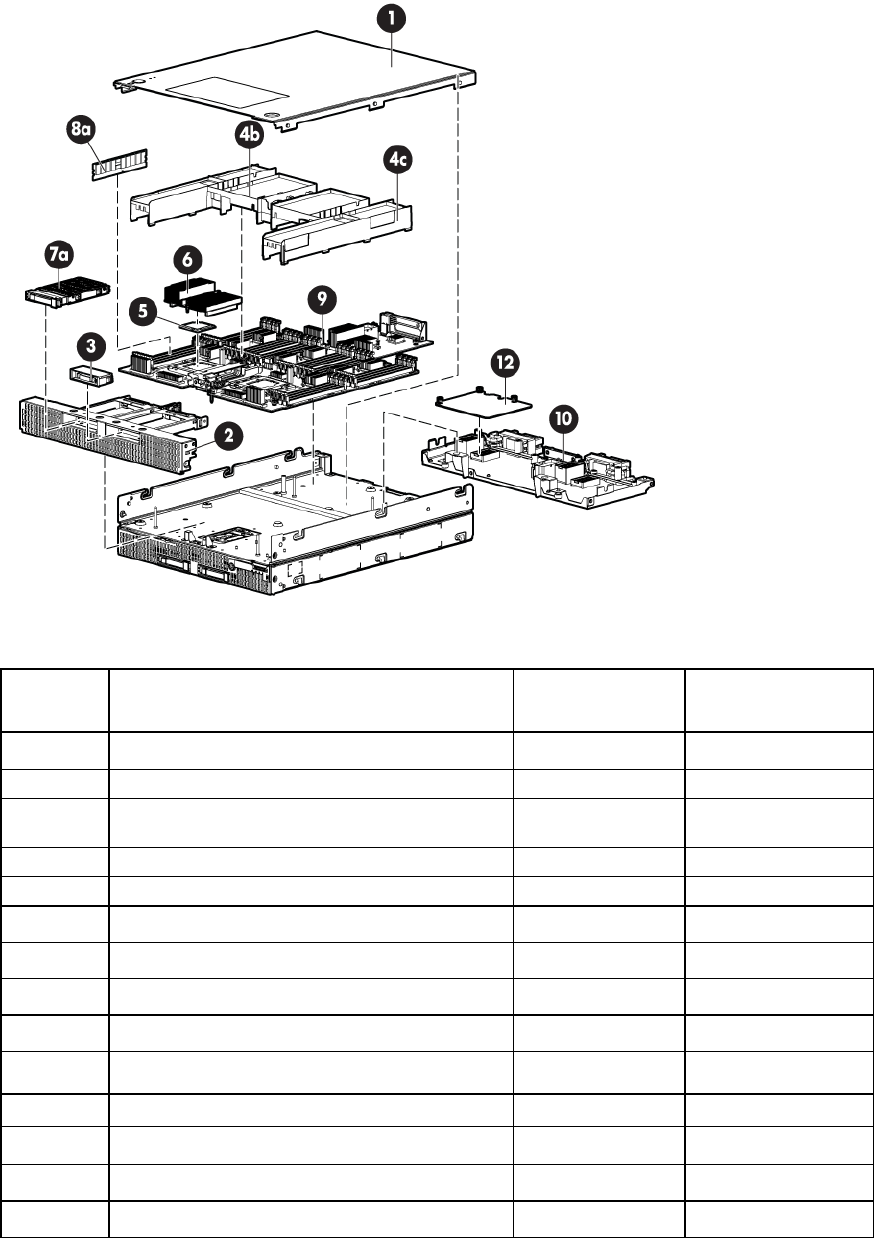

Server blade components (B-side)
Item Description
Spare part
number
Customer self repair
(on page
5
)
Mechanical components
1
Access panel 610095-001 Mandatory
1
2
Front panel/hard drive cage assembly (with
backplane)
610094-001 Mandatory
1
3
Hard drive blank 392613-001 Mandatory
1
4
Hardware and plastics kit 610100-001 Mandatory
1
a) Heatsink blank* — —
b) Left DIMM baffle — —
c) Right DIMM baffle — —
d) Enclosure connector cover* — —
System components
5
Processors — —
a) 2.27-GHz Intel® Xeon® X7560 processor ** 594893-001 Optional
2
b) 2.0-GHz Intel® Xeon® X7550 processor* ** 594894-001 Optional
2
c) 1.86-GHz Intel® Xeon® L7555 processor* ** 594900-001 Optional
2
