Removal and replacement procedures 33
6.

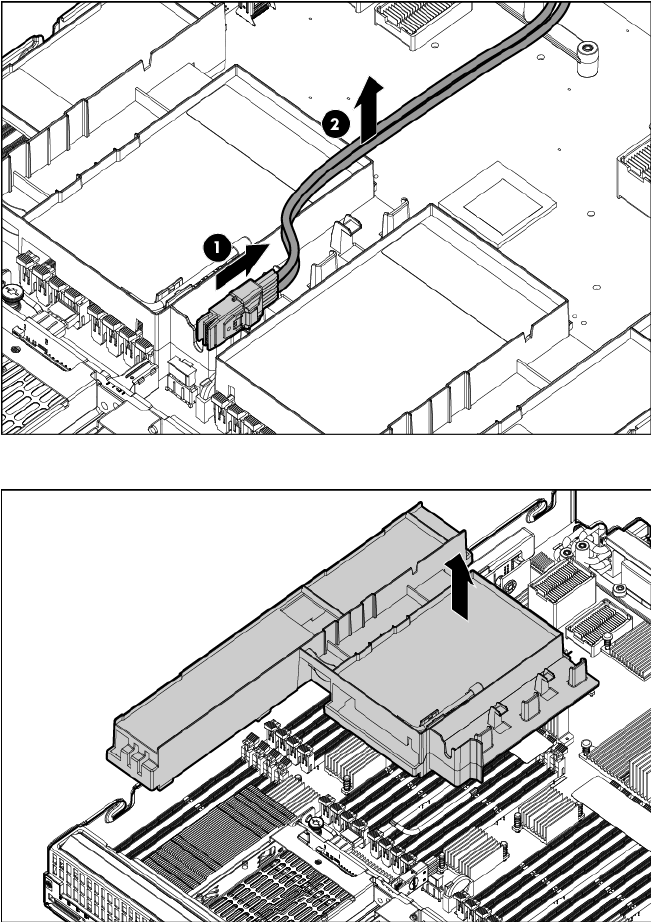

Unroute the SAS/SATA cable.
7. Remove the left DIMM baffle.
To replace the component, reverse the removal procedure.
Right DIMM baffle
To remove the component:
1. Power down the server blade (on page 28).
2. Remove the server blade (on page 29).
3. Do one of the following:
o If replacing the A-side right DIMM baffle, remove the access panel (A-side) ("Access panel (A-side)"
on page 31).
