Removal and replacement procedures 34
o
If replacing the B-side right DIMM baffle, remove the access panel (B-side) ("Access panel (B-side)"
on page 32).

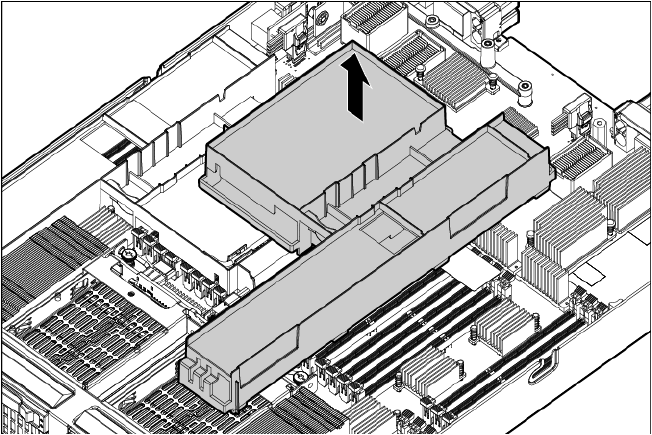

4. Remove the right DIMM baffle.
To replace the component, reverse the removal procedure.
DIMM (A-side)
To remove the component:
1. Power down the server blade (on page 28).
2. Remove the server blade (on page 29).
3. Remove the access panel (A-side) ("Access panel (A-side)" on page 31).
4. Do one of the following:
o If replacing processor 1 DIMMs, remove the right DIMM baffle ("Right DIMM baffle" on page 33).
o If replacing processor 2 DIMMs, remove the left DIMM baffle ("Left DIMM baffle" on page 32).
5. Open the DIMM slot latches.
