Removal and replacement procedures 38
4.

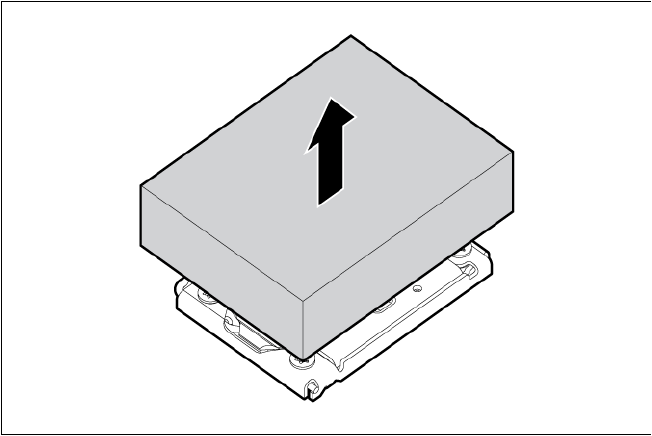

Remove the heatsink blank.
To replace the component, reverse the removal procedure.
Mezzanine card (A-side)
Optional mezzanine cards enable network connectivity or provide Fibre Channel support. For mezzanine
card locations, see "System board components (A-side) (on page 92)."
Because mezzanine cards are supported on multiple server blade models, the mezzanine card may have
captive screws that are not required to secure it to the server blade. When installing a mezzanine card in this
server blade, only two captive screws are required.
To remove the component:
1. Power down the server blade (on page 28).
2. Remove the server blade (on page 29).
3. Remove the access panel (A-side) ("Access panel (A-side)" on page 31).
