Removal and replacement procedures 48
5.

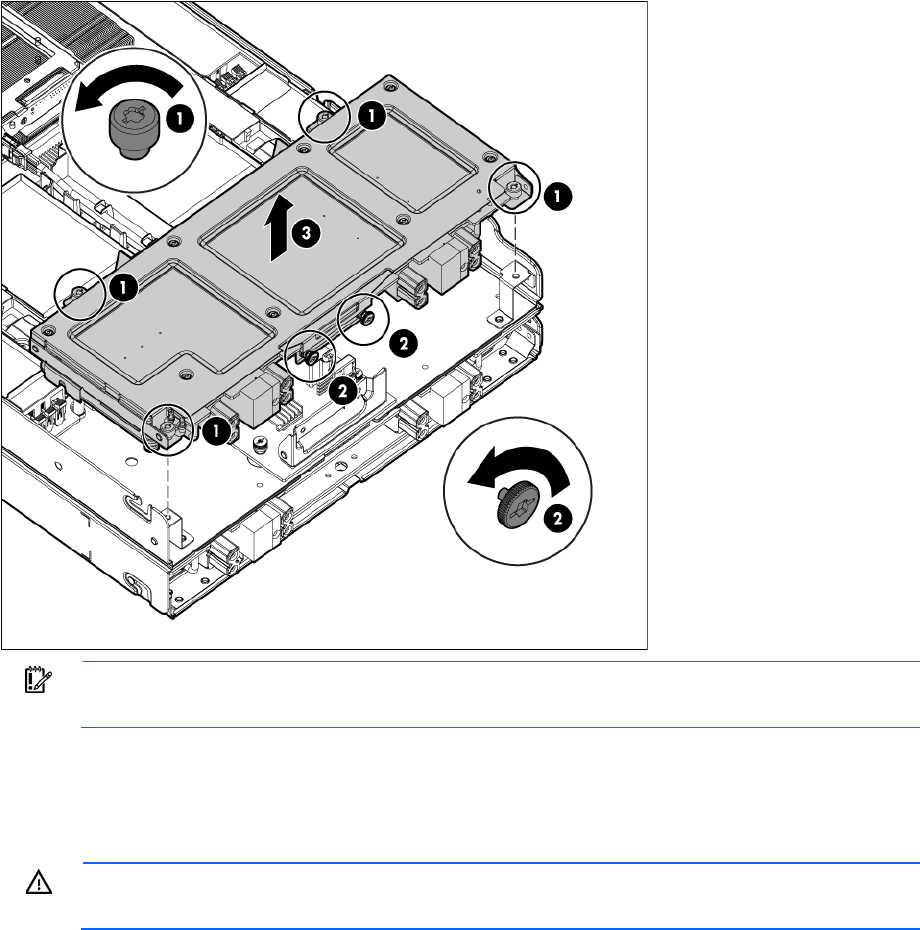

Remove the interposer board.
IMPORTANT:
To properly seat the connectors, press the back side of the connectors firmly in the
locations indicated on the component.
To replace the component, reverse the removal procedure.
Heatsink (A-side)
WARNING: To reduce the risk of personal injury from hot surfaces, allow the drives and the
internal system components to cool before touching them.
To remove the component:
1. Power down the server blade (on page 28).
2. Remove the server blade (on page 29).
3. Remove the access panel (A-side) ("Access panel (A-side)" on page 31).
4. Remove all hard drives ("Hard drive" on page 41).
5. Remove all hard drive blanks ("Hard drive blank" on page 41).
6. Remove the front panel/hard drive cage assembly (A-side) ("Front panel/hard drive cage assembly
(A-side)" on page 42).
