Removal and replacement procedures 54
10.

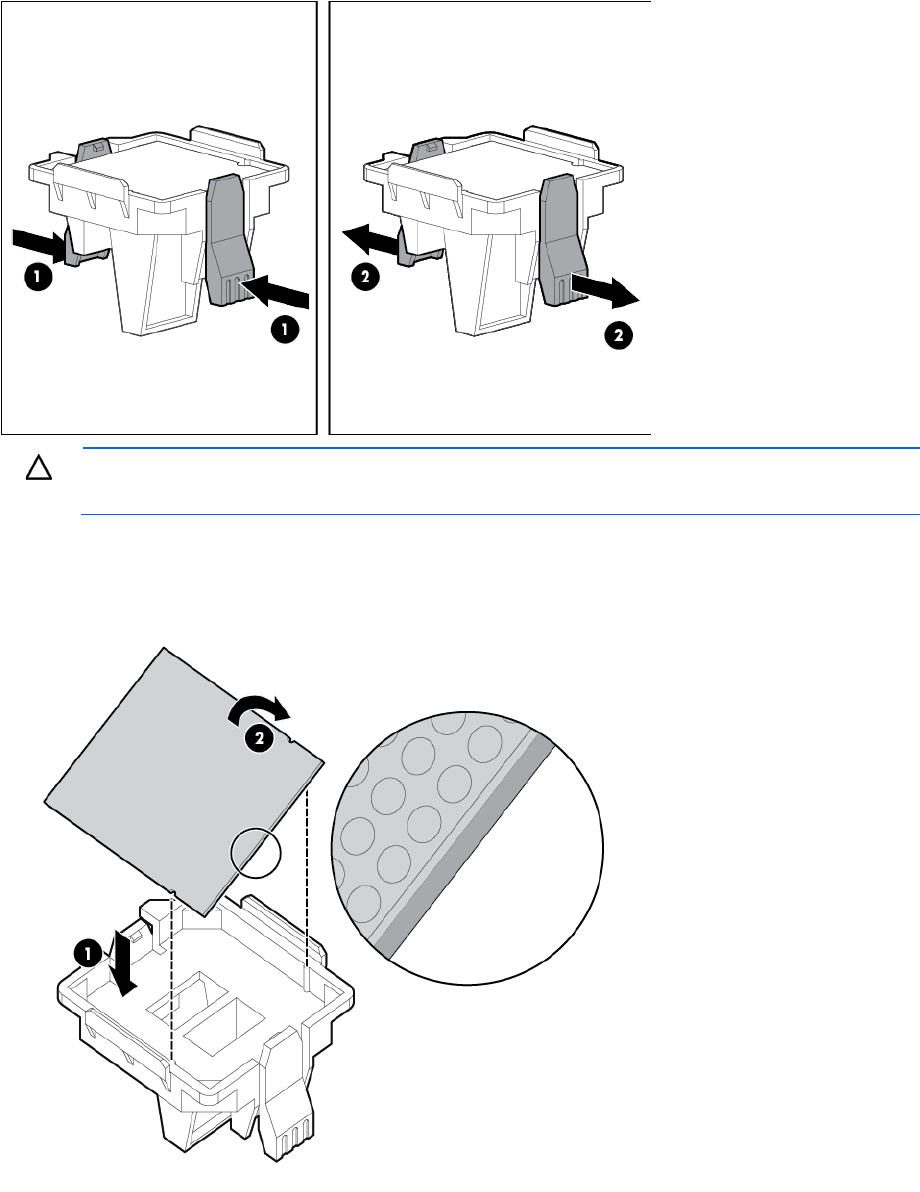

Carefully rotate the tool, and then push in and release the tabs to secure the processor in the tool.
CAUTION: To avoid damage to the processor, do not touch the bottom of the processor,
especially the contact area.
To replace the component:
1. Carefully insert the processor into the processor installation tool. Handle the processor by the edges
only, and do not touch the bottom of the processor, especially the contact area.
