Removal and replacement procedures 59
c.

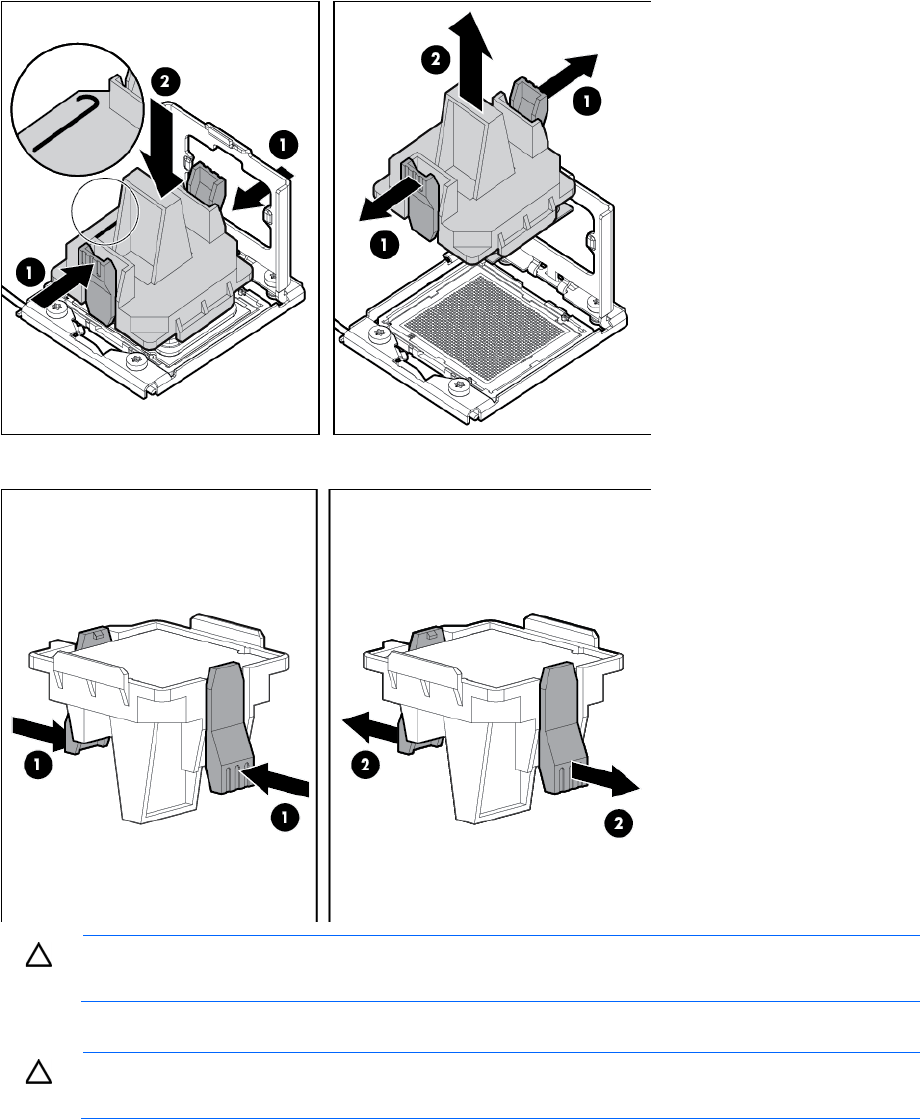

Release the tabs, and then carefully lift the processor and tool straight up.
10. Carefully rotate the tool, and then push in and release the tabs to secure the processor in the tool.
CAUTION: To avoid damage to the processor, do not touch the bottom of the processor,
especially the contact area.
To replace the component:
CAUTION: Failure to completely open the processor locking lever prevents the processor from
seating during installation, leading to hardware damage.
