Removal and replacement procedures 63
8.

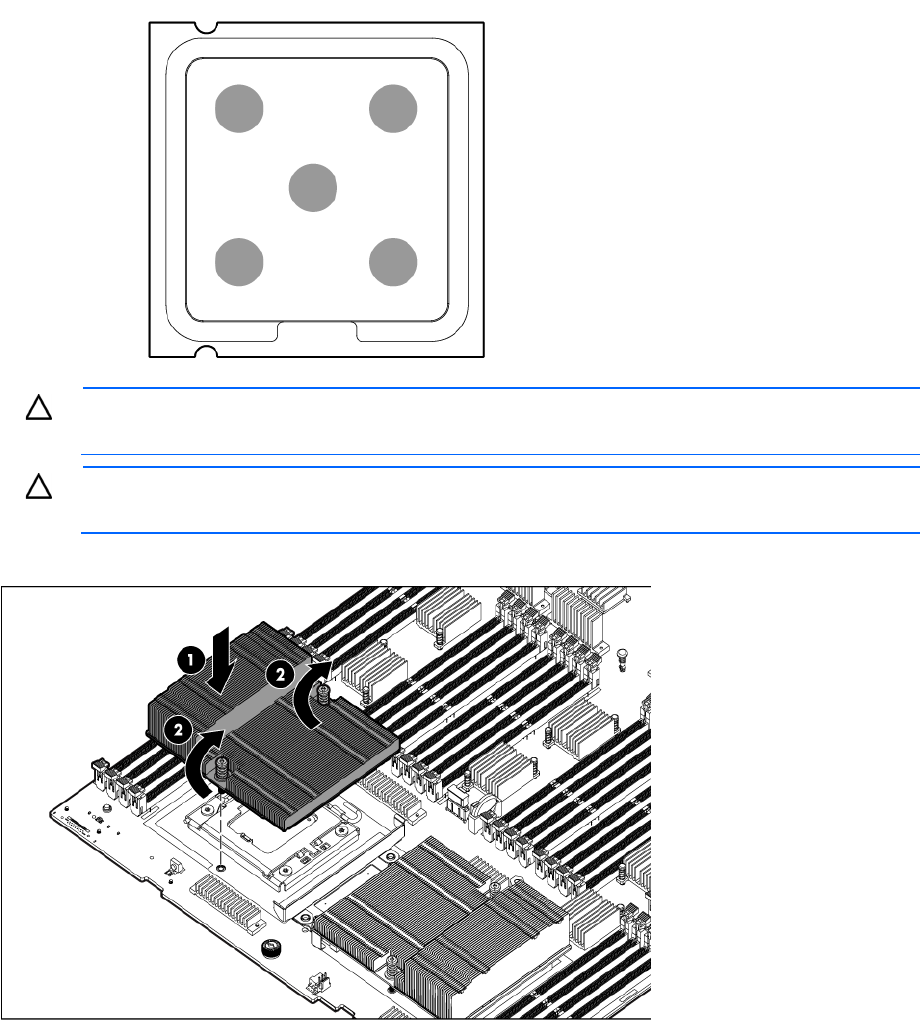

Apply all the grease to the top of the processor in the following pattern to ensure even distribution.
CAUTION: Orient the heatsink as indicated in the procedure. Otherwise, you cannot install the
hard drive cage.
CAUTION: When tightening the heatsink screws, first tighten the front screw four to five turns,
tighten the back screw completely, and then finish tightening the front screw.
9. Install the heatsink.
10. Install the front panel/hard drive cage assembly (B-side) ("Front panel/hard drive cage assembly
(B-side)" on page 43).
11. Install the access panel (B-side) ("Access panel (B-side)" on page 32).
12. Install the hard drives ("Hard drive" on page 41).
13. Install the hard drive blanks ("Hard drive blank" on page 41).
14. Install the server blade ("Installing a server blade" on page 30).
15. Power up the server blade.
