Removal and replacement procedures 72
16.
Install all components removed from the B-side system board.

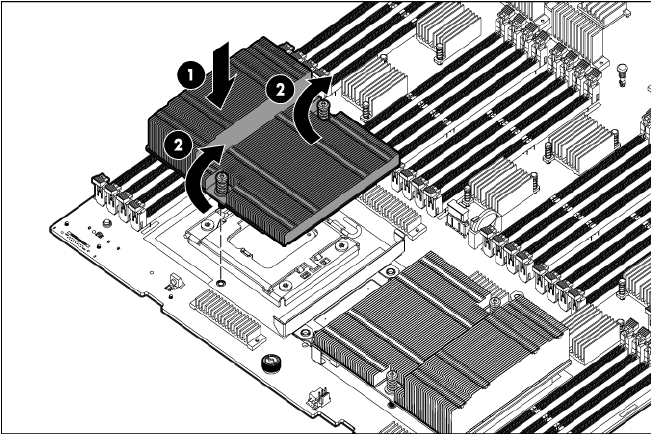

17. Install the heatsinks (B-side).
18. Install the front panel/hard drive cage assembly (B-side) ("Front panel/hard drive cage assembly
(A-side)" on page 42).
19. Install the access panel (B-side) ("Access panel (B-side)" on page 32).
20. Install the hard drives ("Hard drive" on page 41).
21. Install the hard drive blanks ("Hard drive blank" on page 41).
22. Install the server blade ("Installing a server blade" on page 30).
23. Power up the server blade.
After you replace the system board, you must re-enter the server blade serial number and the product ID.
1. During the server blade startup sequence, press the F9 key to access RBSU.
2. Select the Advanced Options menu.
3. Select Service Options.
4. Select Serial Number. The following warnings appear:
WARNING! WARNING! WARNING! The serial number is loaded into the system during
the manufacturing process and should NOT be modified. This option should only
be used by qualified service personnel. This value should always match the
serial number sticker located on the chassis.
Warning: The serial number should ONLY be modified by qualified personnel.
This value should always match the serial number located on the chassis.
5. Press the Enter key to clear the warning.
6. Enter the serial number and press the Enter key.
7. Select Product ID. The following warning appears:
Warning: The Product ID should ONLY be modified by qualified personnel. This
value should always match the Product ID on the chassis.
8. Enter the product ID and press the Enter key.
9. Press the Esc key to close the menu.
10. Press the Esc key to exit RBSU.
