System board (B-side)
To remove the component:
1. Power down the server blade (on page 28).
2. Remove the server blade (on page 29).
3. Remove all hard drives ("Hard drive" on page 41).
4. Remove all hard drive blanks ("Hard drive blank" on page 41).
5. Remove the access panel (B-side) ("Access panel (B-side)" on page 32).
6. Remove the interposer board ("Interposer board" on page 47).
7. Remove the front panel/hard drive cage assembly (B-side) ("Front panel/hard drive cage assembly
(B-side)" on page 43).
8. Remove the left DIMM baffle ("Left DIMM baffle" on page 32).
9. Remove the right DIMM baffle ("Right DIMM baffle" on page 33).
10. Remove all DIMMs (B-side) ("DIMM (B-side)" on page 35).
11. Remove the heatsinks (B-side) ("Heatsink (B-side)" on page 50).

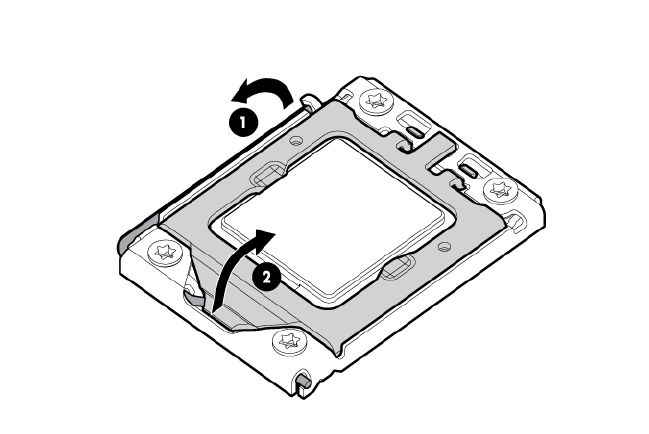

12. Open the processor locking lever and the processor socket retaining bracket.
13. Using the processor tool, remove the processor from the system board:
a. Line up the processor tool, ensuring the locking lever graphic on the tool is oriented correctly.
b. Press in on the plastic tabs, and then place the tool on the processor.
