Removal and replacement procedures 83
6.

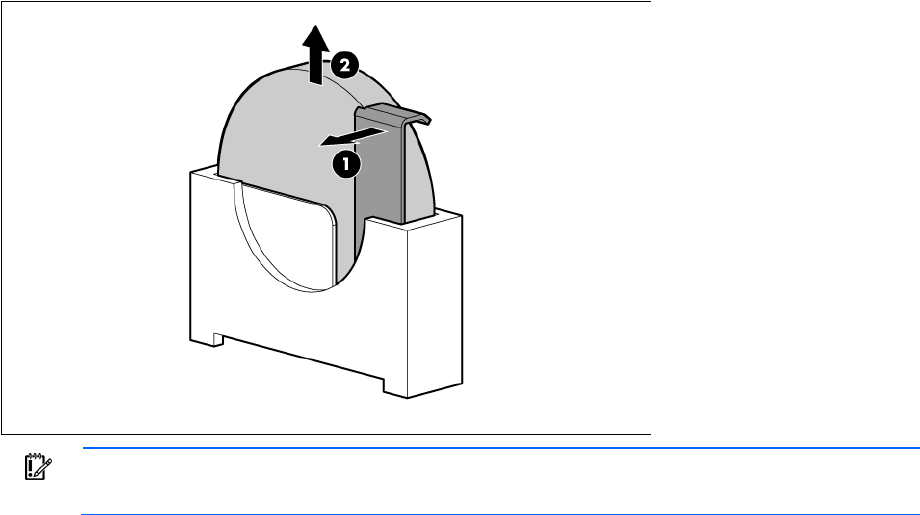

Remove the battery.
IMPORTANT: Replacing the system board battery resets the system ROM to its default
configuration. After replacing the battery, reconfigure the system through RBSU.
To replace the component, reverse the removal procedure.
Server blade release lever
To remove the component:
1. Power down the server blade (on page 28).
2. Remove the server blade (on page 29).
3. Remove the access panel (A-side) ("Access panel (A-side)" on page 31).
4. Remove all hard drives ("Hard drive" on page 41).
5. Remove all hard drive blanks ("Hard drive blank" on page 41).
6. Remove the front panel/hard drive cage assembly (A-side) ("Front panel/hard drive cage assembly
(A-side)" on page 42).
