Removal and replacement procedures 84
7.

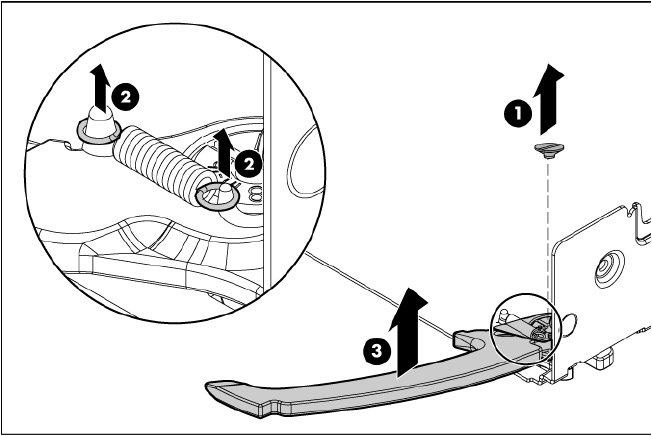

Remove the server blade release lever.
To replace the component, reverse the removal procedure.
Release button
To remove the component:
1. Power down the server blade (on page 28).
2. Remove the server blade (on page 29).
3. Remove the access panel (A-side) ("Access panel (A-side)" on page 31).
4. Remove all hard drives ("Hard drive" on page 41).
5. Remove all hard drive blanks ("Hard drive blank" on page 41).
6. Remove the front panel/hard drive cage assembly (A-side) ("Front panel/hard drive cage assembly
(A-side)" on page 42).
7. Remove the system board (A-side) ("System board (A-side)" on page 64).
Removing DIMMs, heatsinks, processors, and mezzanine cards is not required for this procedure.
