Server component identification 90
Server component identification

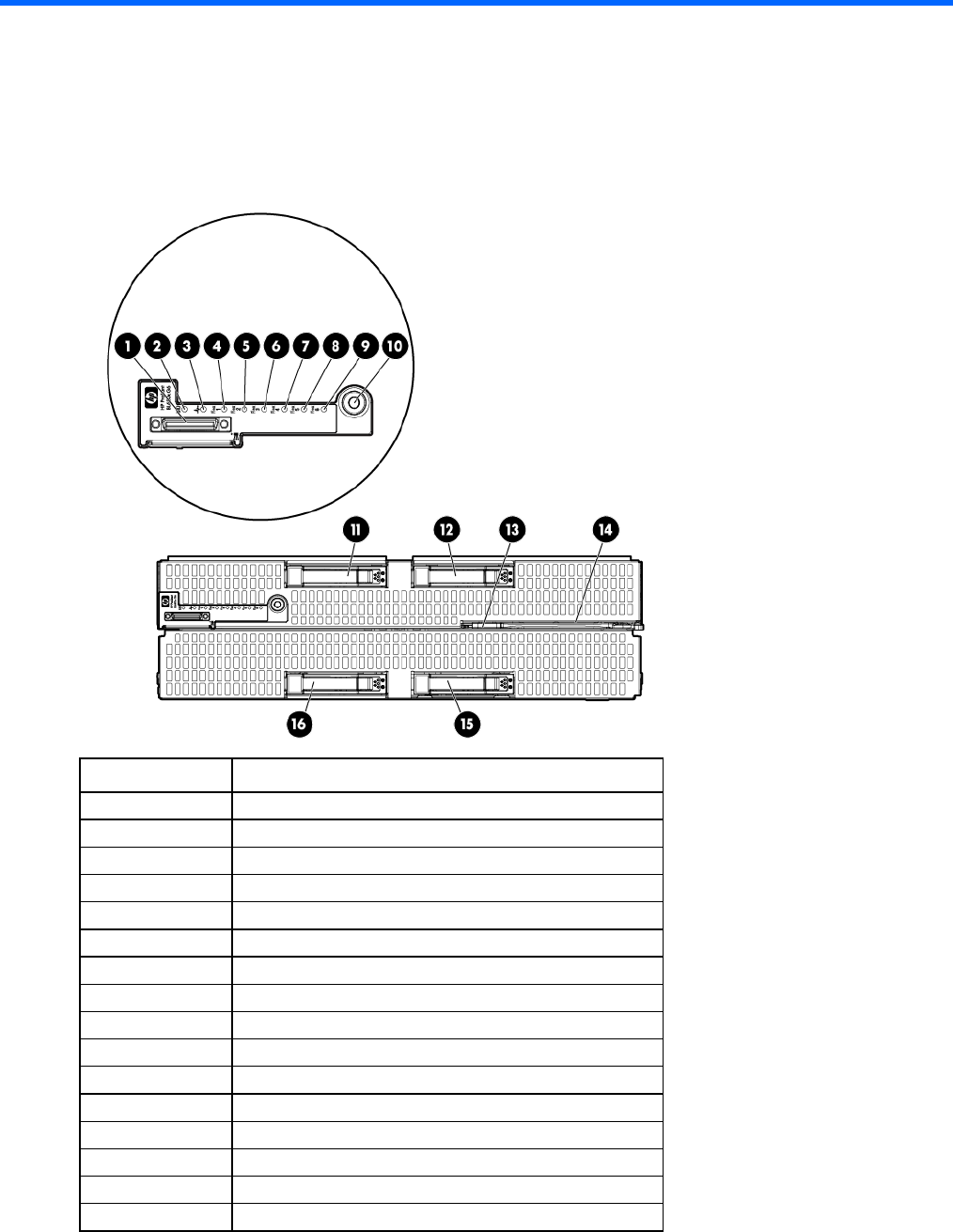

Front panel components and LEDs
Item Description
1
Local I/O connector
2
UID LED
3
Health LED
4
Flex 1 LED
5
Flex 2 LED
6
Flex 3 LED
7
Flex 4 LED
8
Flex 5 LED
9
Flex 6 LED
10
Power On/Standby button and system power LED
11
Hard drive bay 1
12
Hard drive bay 2
13
Server release lever button
14
Server release lever
15
Hard drive bay 4
16
Hard drive bay 3
