Removal and replacement procedures 33

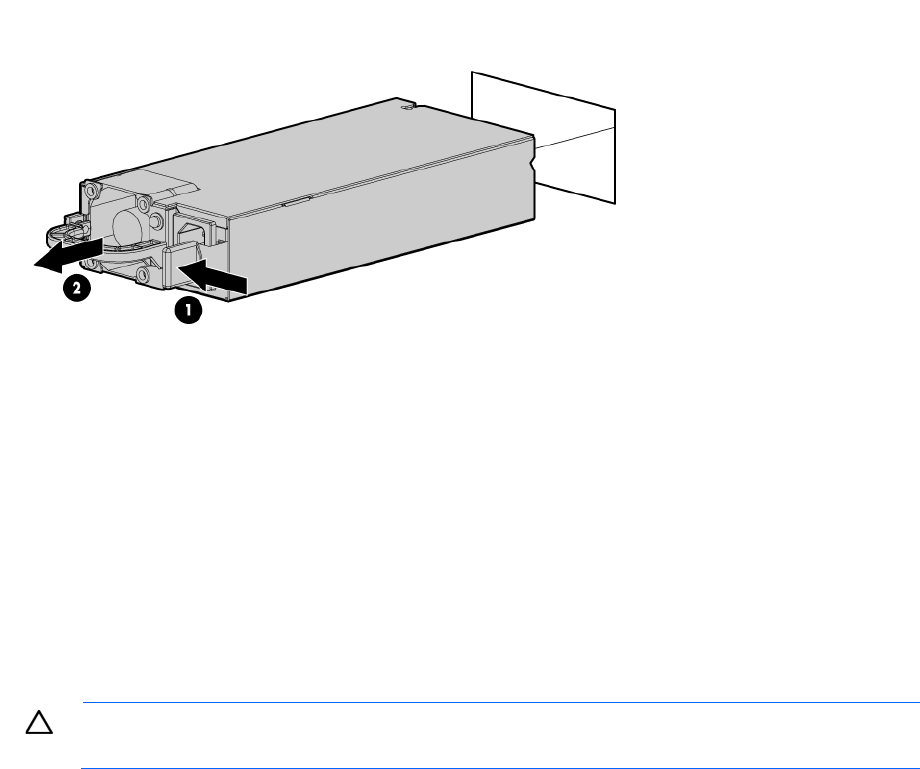

To replace the component, reverse the removal procedure.
48V DC power supply option
One of the following optional HP input cables with pre-fastened ring tongues may be purchased from HP or
an authorized reseller:
• A5S97A—1.3-m (7.55-ft) 48V DC Power Cable Kit
• A5S98A—2.5-m (3.94-ft) 48V DC Power Cable Kit
If you are not using an optional HP input cable, use an HP-approved 10 or 12 AWG green and yellow
ground cable, no shorter than 150 cm (59.06 in), and 10 or 12 AWG power cables.
CAUTION: Use only the ring terminals provided with the power supply for customer-built power
connections. Be sure no wire protrudes from the bottom of the ring terminal barrels.
To remove the component:
1. Make sure the 48V DC power source is off or the PDU breaker is in the off position, and then disconnect
the power cord from the 48V DC power source or PDU.
2. Remove the power cord from the cable management arm, if installed.
