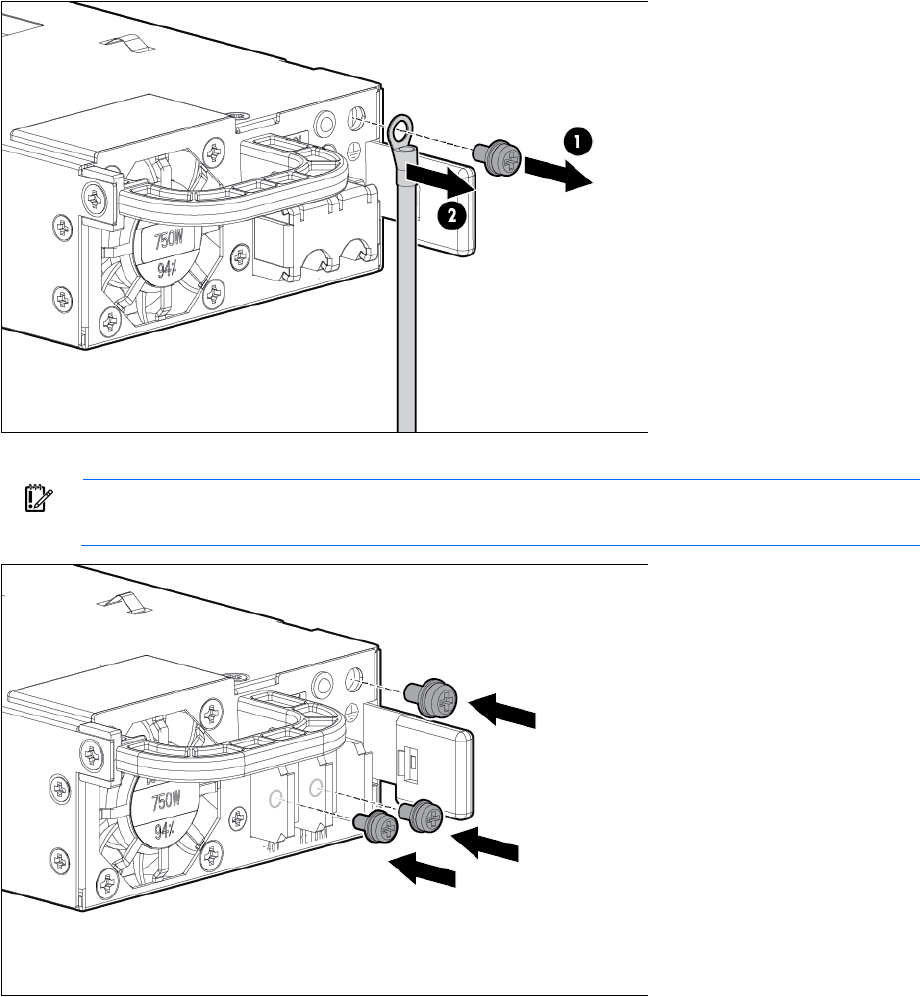

Remove the ground (earthed) wire from the ground screw and washer.
6. Attach the screws to the terminal block.
IMPORTANT: The minimum nominal thread diameter of a pillar or stud type terminal must be 3.5
mm (0.138 in); the diameter of a screw type terminal must be 4.0 mm (0.157 in).
