Removal and replacement procedures 36
7.

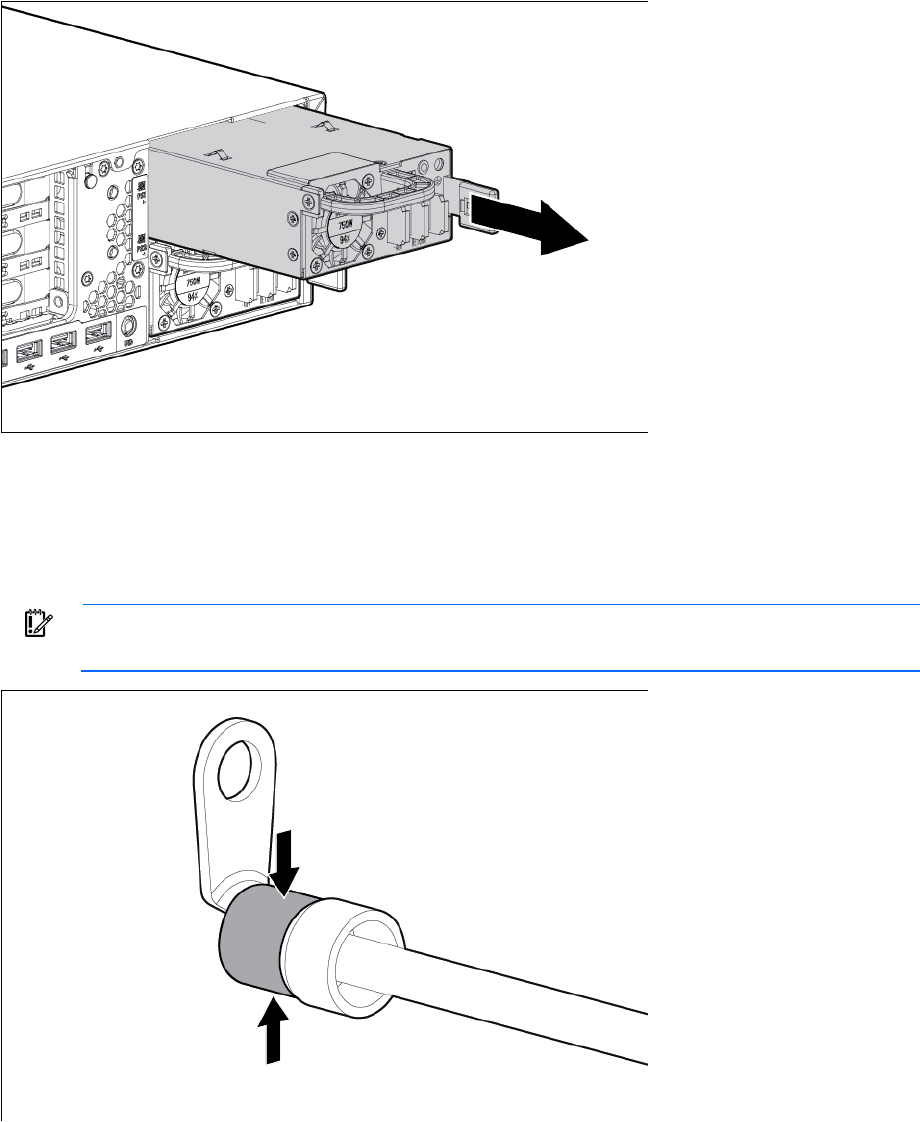

Remove the power supply from the power supply bay.
8. If you are not immediately replacing the power supply, install the safety cover.
To replace the component:
1. If you are not using an optional HP input cable or the ring tongues you crimped previously, with the
ground cable disconnected from the 48V power source, crimp the ring tongues to the power and
ground cables coming from the 48V source.
IMPORTANT: The power supply uses two power ring tongues and one ground ring tongue. They
are not interchangeable.
