Removal and replacement procedures 37
2.

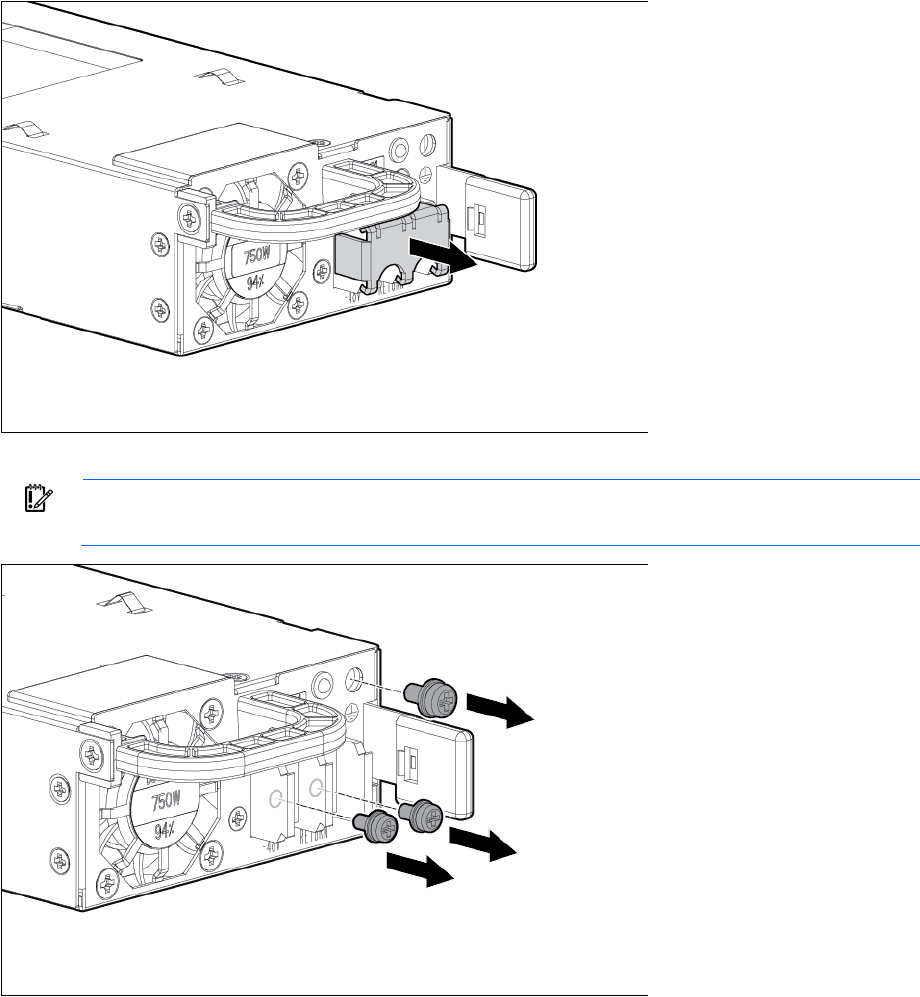

Remove the safety cover from the terminal block on the front of the power supply.
3. Remove the screws from the terminal block.
IMPORTANT: The minimum nominal thread diameter of a pillar or stud type terminal must be 3.5
mm (0.138 in); the diameter of a screw type terminal must be 4.0 mm (0.157 in).
