Removal and replacement procedures 42
b.

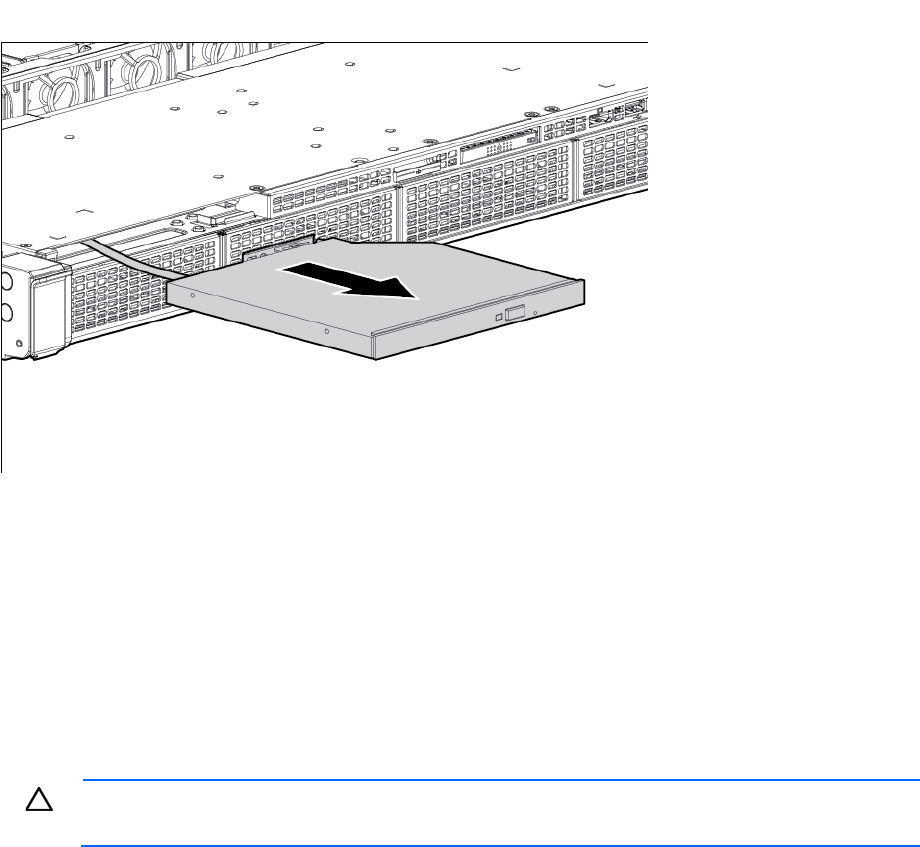

Disconnect the SATA DVD cable from the rear of the DVD drive ("DVD-ROM and DVD-RW drive
cabling" on page 69).
To replace the component, reverse the removal procedure.
Fan module
The server has eight fans. Install fans 1 and 2 only when processor 2 is installed. When only one processor
is installed, install the fan blanks in bays 1 and 2 ("Fan modules" on page 87).
To remove the component:
1. Extend the server from the rack (on page 26).
2. Remove the access panel ("Access panel" on page 30).
CAUTION: To avoid server shutdown, a fan must be replaced within 60 seconds of being
removed.
3. Remove the fan module.
