Removal and replacement procedures 43

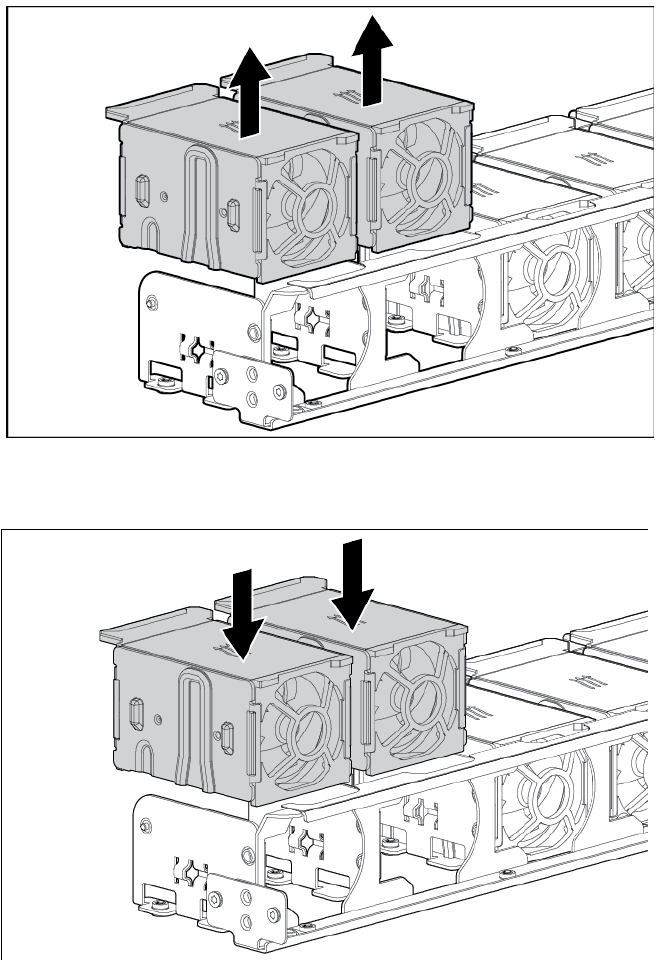

The illustration shows fans 1 and 2 removed for a single-processor configuration.
To replace the component:
1. Install the fan module.
2. Install the access panel ("Access panel" on page 30).
3. Slide the server into the rack.
4. Power up the server.
Fan blank
Install fans 1 and 2 only when processor 2 is installed. When only one processor is installed, install the fan
blanks in bays 1 and 2 ("Fan modules" on page 87).
To remove the component:
1. Power down the server (on page 25).
