Removal and replacement procedures 47
Front video adapter
Depending on the model purchased, the server may look different than shown.
The 10 SFF drive configuration does not support the front video adapter.

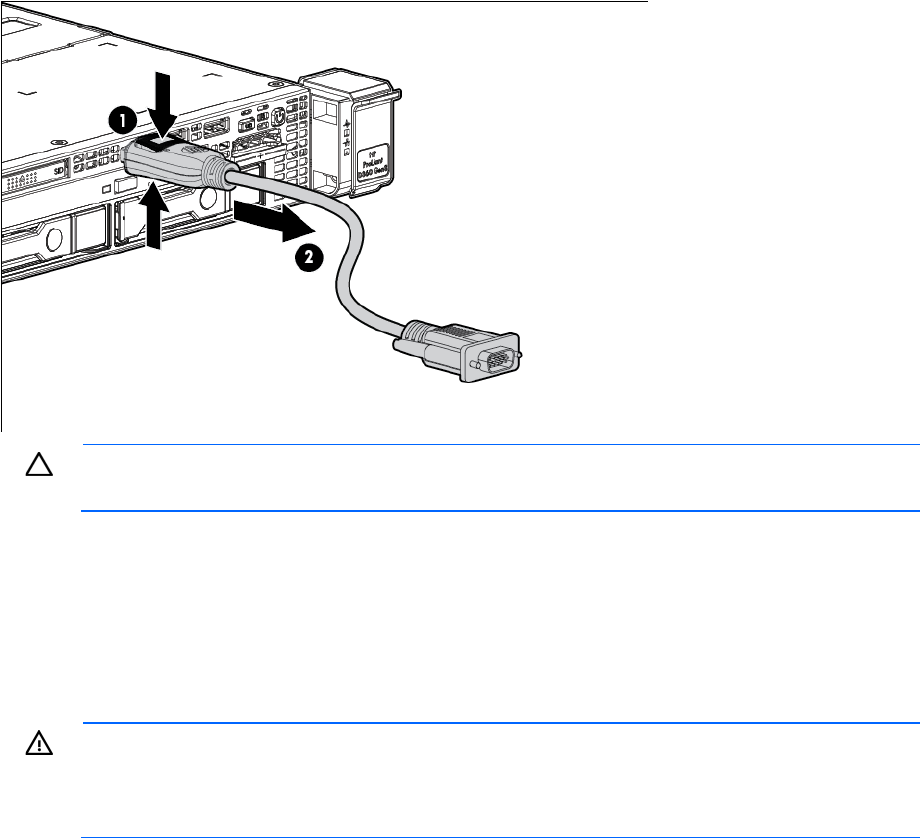

Remove the component as indicated.
CAUTION: Be sure to connect the video adapter to the video connector, and not to the USB
connector.
To replace the component, reverse the removal procedure.
The 10 SFF drive configuration does not support the front video adapter.
FlexibleLOM
To remove the component:
WARNING: To reduce the risk of personal injury, electric shock, or damage to the equipment,
remove the power cord to remove power from the server. The front panel Power On/Standby
button does not completely shut off system power. Portions of the power supply and some internal
circuitry remain active until AC power is removed.
1. Power down the server (on page 25).
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Remove any attached network cables.
4. Extend the server from the rack (on page 26).
5. Remove the access panel ("Access panel" on page 30).
6. Loosen the thumbscrew.
