Removal and replacement procedures 48
7.

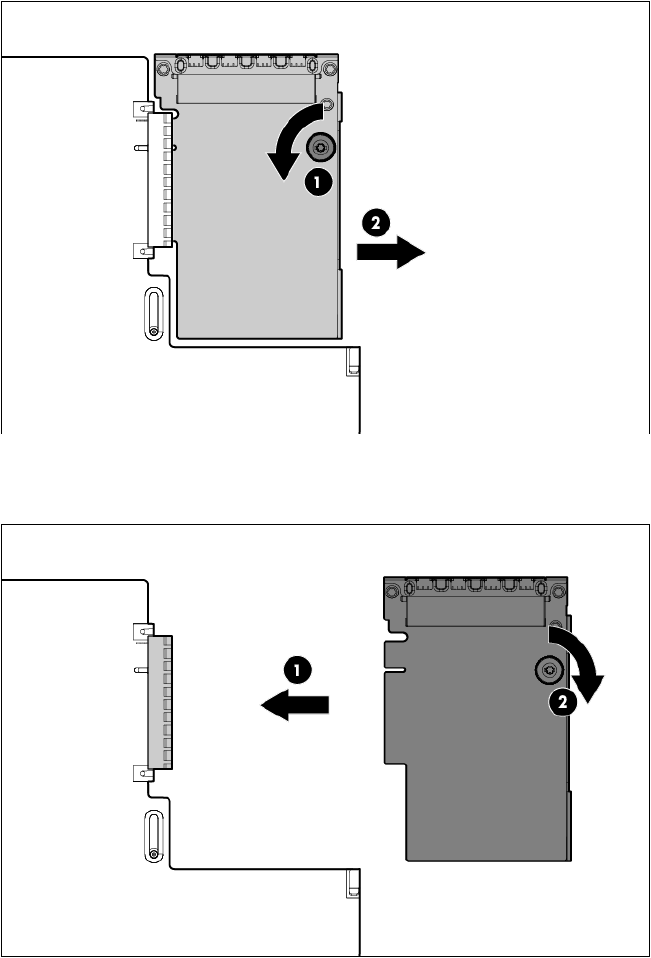

Remove the existing FlexibleLOM.
To replace the component:
1. Firmly seat the FlexibleLOM in the slot, and then tighten the thumbscrew.
2. Install the access panel ("Access panel" on page 30).
3. Slide the server into the rack.
4. Connect the LAN segment cables.
5. Connect each power cord to the server.
6. Connect each power cord to the power source.
7. Power up the server.
