Removal and replacement procedures 56
o

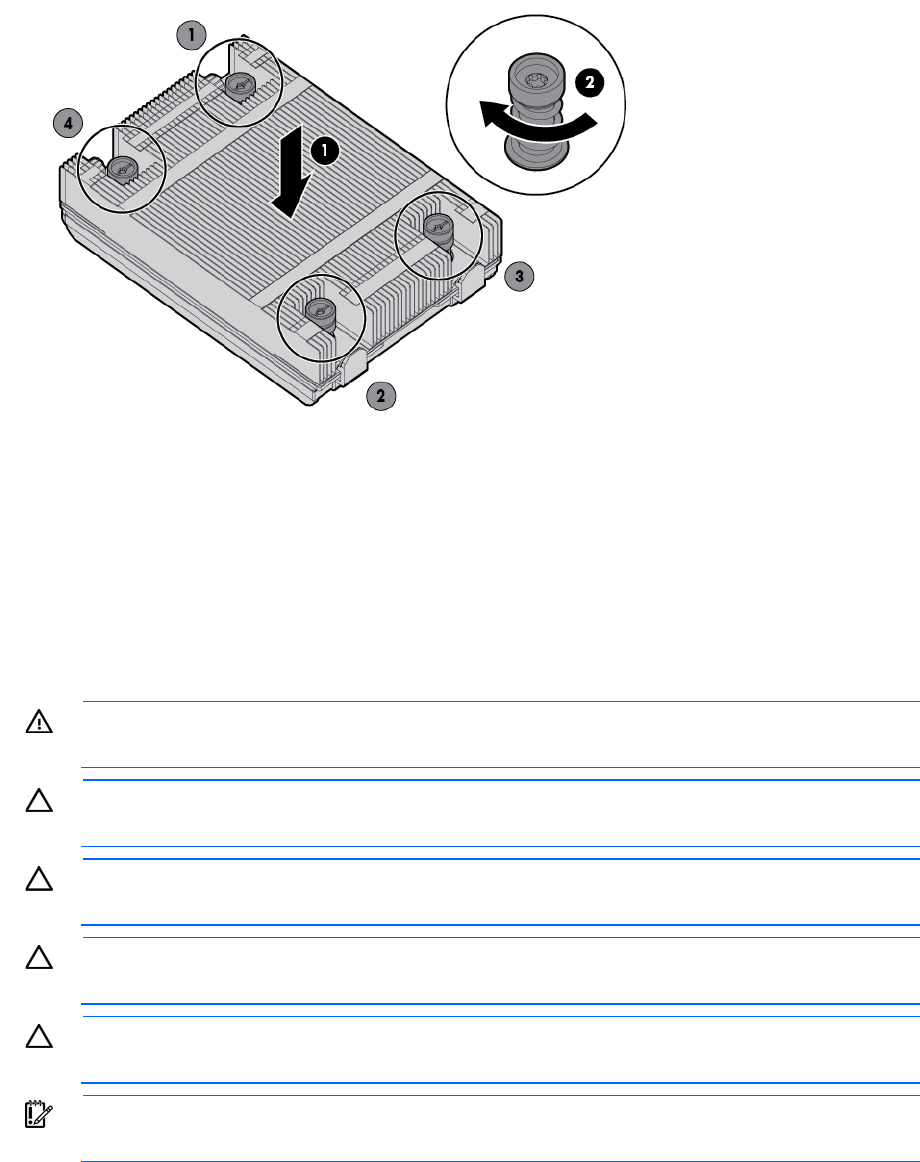

Screw-down heatsink
3. Install the access panel ("Access panel" on page 30).
4. Slide the server into the rack.
5. Connect each power cord to the server.
6. Connect each power cord to the power source.
7. Power up the server.
Processor
WARNING: To reduce the risk of personal injury from hot surfaces, allow the drives and the
internal system components to cool before touching them.
CAUTION: To prevent possible server malfunction and damage to the equipment, multiprocessor
configurations must contain processors with the same part number.
CAUTION: The heatsink thermal interface media is not reusable and must be replaced if the
heatsink is removed from the processor after it has been installed.
CAUTION: To prevent possible server overheating, always populate processor socket 2 with a
processor and a heatsink or a processor socket cover and a heatsink blank.
CAUTION: To avoid thermal shutdown, all fans must be installed in a dual processor
configuration.
IMPORTANT: Processor socket 1 must be populated at all times or the server does not function.
To remove the processor:
1. Power down the server (on page 25).
2. Remove all power:
