Component identification 76
Component identification

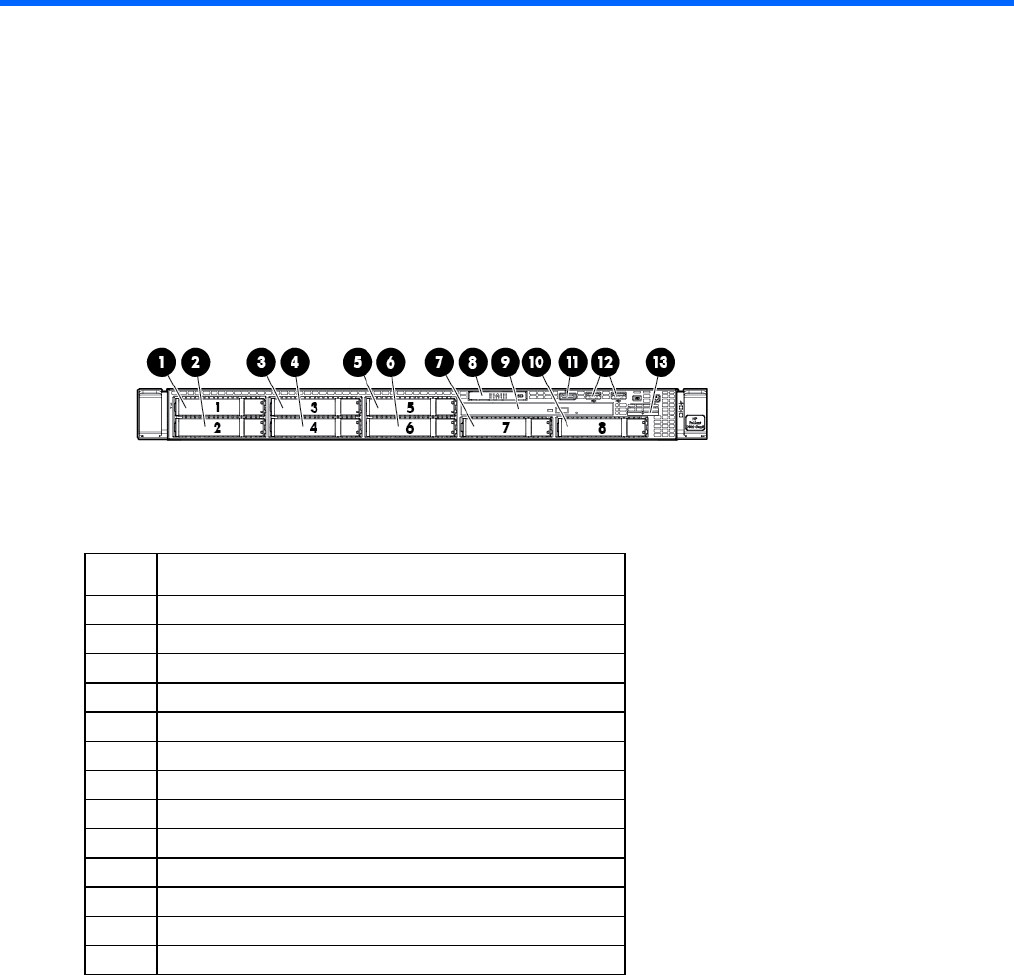

Front panel components
• 8 SFF
Item Description
1
SAS/SATA/SSD drive bay 1
2
SAS/SATA/SSD drive bay 2
3
SAS/SATA/SSD drive bay 3
4
SAS/SATA/SSD drive bay 4
5
SAS/SATA/SSD drive bay 5
6
SAS/SATA/SSD drive bay 6
7
SAS/SATA/SSD drive bay 7
8
Systems Insight Display
9
DVD-ROM drive (optional)
10
SAS/SATA/SSD drive bay 8
11
Front video connector (front video port adapter required)
12
USB connectors (2)
13
Serial number tab
